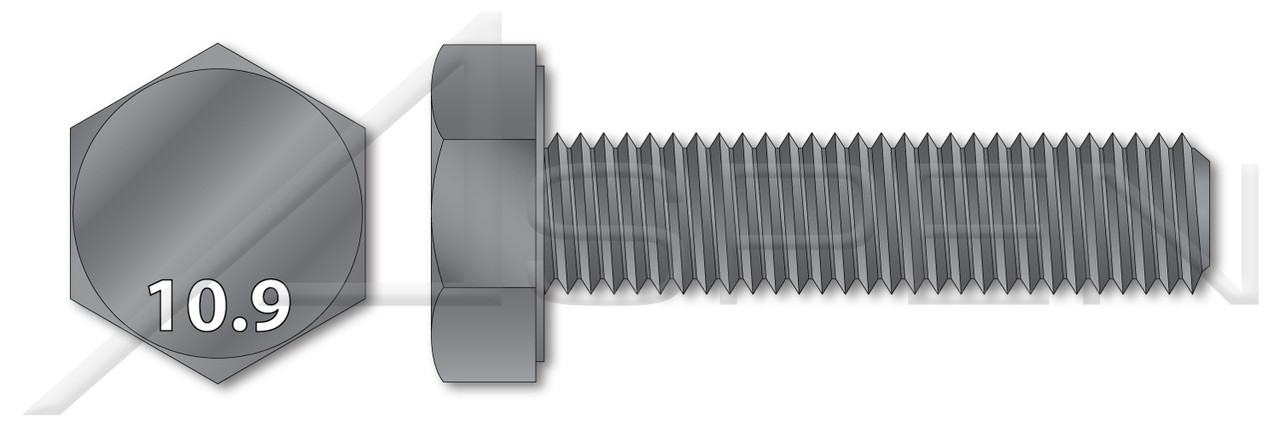

Product Description
- Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
- Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
- Chamfered point improves engagement with a nut or pre-tapped hole.
- Washer face provides a precision bearing surface.
- Diameter (Nominal): M14
- Thread Pitch: 2.0
- Diameter (Dimension): 14mm
- Length (Nominal): 120mm
- Thread Length (Minimum): 120mm
- Across Flats (Basic): 22mm
- Head Height, Overall: 8.8mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Hex Head
- Head Style Detail: Washer Face
- Drive Style: External Hex Drive
- Pitch: Coarse Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Chamfered Point
- Material: Steel
- Material Grade: Class 10.9 Steel
- Material Processes: Quenched and Tempered
- Coating: Uncoated
- Standards and Specifications: DIN 933 / ISO 4017
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Drive Style External Hex Drive
System of Measurement Metric
Category Cap Screws
Head Style Hex Head
Material Class 10.9 Steel
Standards and Specifications DIN 933 / ISO 4017
Diameter/Pitch M14-2.0
Coating Process Uncoated
Length 120mm
