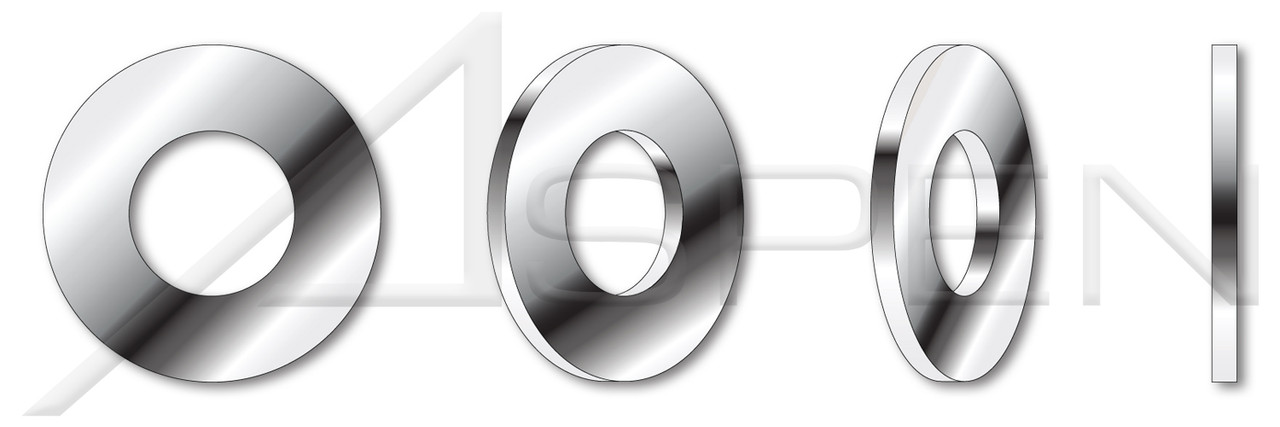

Product Description
- SAE flat washer dimensions were developed by the Society of Automotive Engineers.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- The nominal diameter is the bolt size to use for this flat washer.
- Diameter (Nominal): 3/8"
- Inside Diameter (Nominal): 13/32"
- Inside Diameter (Minimum): 0.401"
- Inside Diameter (Maximum): 0.419"
- Outside Diameter (Nominal): 13/16"
- Outside Diameter (Minimum): 0.805"
- Outside Diameter (Maximum): 0.827"
- Thickness (Nominal): 1/16"
- Thickness (Minimum): 0.051"
- Thickness (Maximum): 0.08"
- Category: Standard Flat Washers
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: SAE Flat Washer Dimensions
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.21.1-2009
Product Videos
Custom Field
Brand Aspen Fasteners
Category Standard Flat Washers
Coating Uncoated
Diameter (Nominal) 3/8"
Form and Design SAE Flat Washer Dimensions
Inside Diameter (Maximum) 0.419"
Inside Diameter (Minimum) 0.401"
Inside Diameter (Nominal) 13/32"
Material Stainless Steel
Material Grade 18-8 Stainless Steel
Order Flat Washers
Origin Origin Undefined
Outside Diameter (Maximum) 0.827"
Outside Diameter (Minimum) 0.805"
Outside Diameter (Nominal) 13/16"
POS ST204-38X1332X1316X11-001000,ST204-38-000400,ST204-38-001000,ST204-38-000150
Product Class Washers
Standards and Specifications ASME B18.21.1-2009
System of Measurement Inch
Thickness (Maximum) 0.08"
Thickness (Minimum) 0.051"
Thickness (Nominal) 1/16"
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/ST204-38
