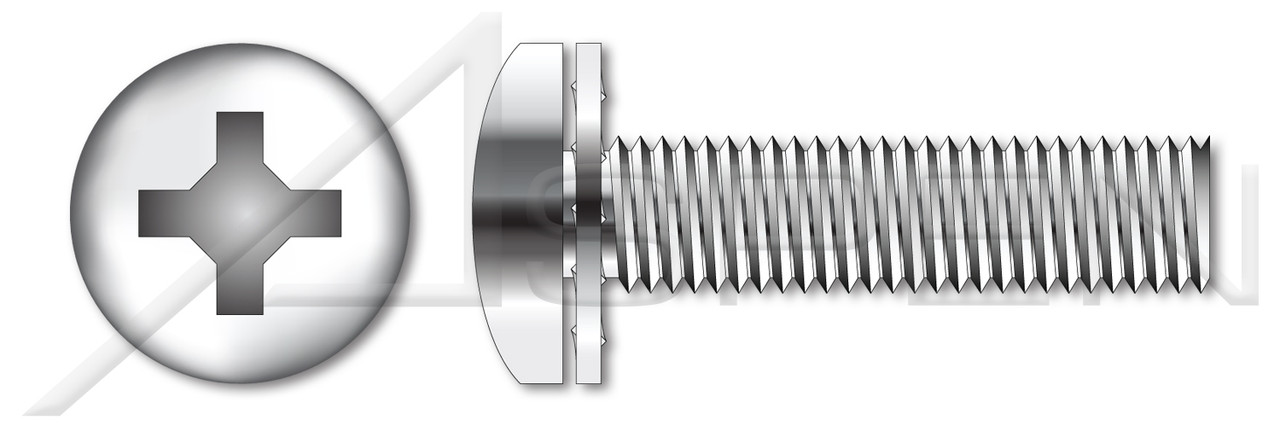

Product Description
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- SEMS screws come pre-assembled with permanently installed free-spinning lock washer.
- Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #10
- Thread Pitch: 32
- Diameter (Dimension): 0.1875"
- Length (Nominal): 3/4"
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Machine Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer
- Head Style: Pan Head
- Head Style Detail: Free-Spinning 410 Stainless Steel Internal Tooth Lock Washer
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: AISI 304 Stainless Steel (18-8)
- Coating: Uncoated
- Standards and Specifications: ASME B18.13
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Drive Style Cruciform Recess Drive
System of Measurement US Units
Standards and Specifications ASME B18.13
Coating Process Uncoated
Material AISI 304 Stainless Steel (18-8)
Length 3/4"
Diameter/Pitch #10-32
Head Style Pan Head
Category Machine Screws
