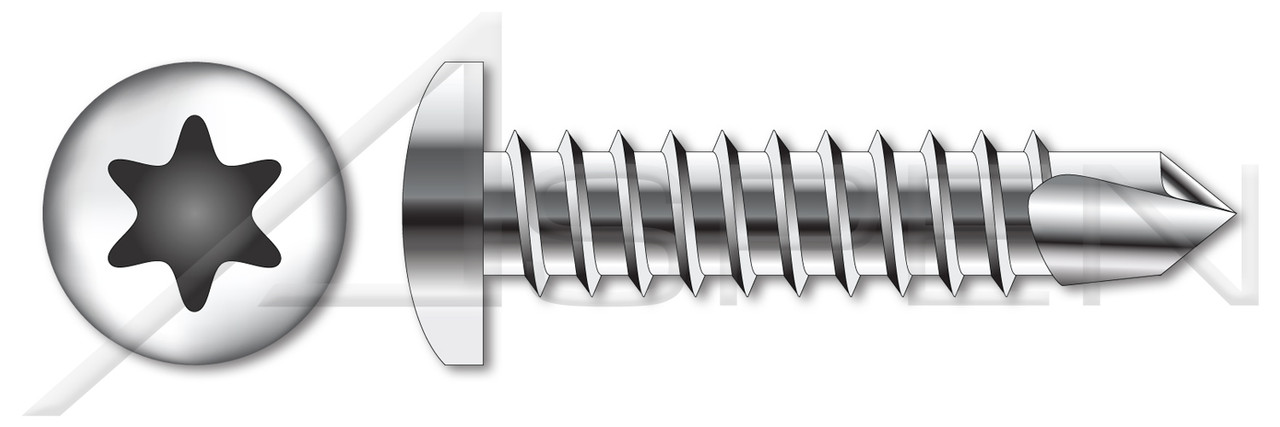

Product Description
- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
- A 6-lobe recess is also known as a hexalobular internal drive.
- Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #10
- Thread Pitch: 16
- Diameter (Dimension): 0.1875"
- Length (Nominal): 5/8"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Drilling Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: 6Lobe Drive
- Drive Detail: Torx® Generic Alternative
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Stainless Steel
- Material Grade: AISI 304 Stainless Steel (18-8)
- Coating: Uncoated
- Standards and Specifications: SAE J78
- Torx® and Torx Plus® are trademarks of Acument Global Technologies Inc. (Acument). Unless specified otherwise, Acument has not licensed the use of these trademarks to Aspen Fasteners Inc.
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Coating Process Uncoated
Category Self-Drilling Screws
Length 5/8"
System of Measurement US Units
Standards and Specifications SAE J78
Drive Style 6Lobe Drive
Head Style Pan Head
Diameter/Pitch #10-16
Material AISI 304 Stainless Steel (18-8)
