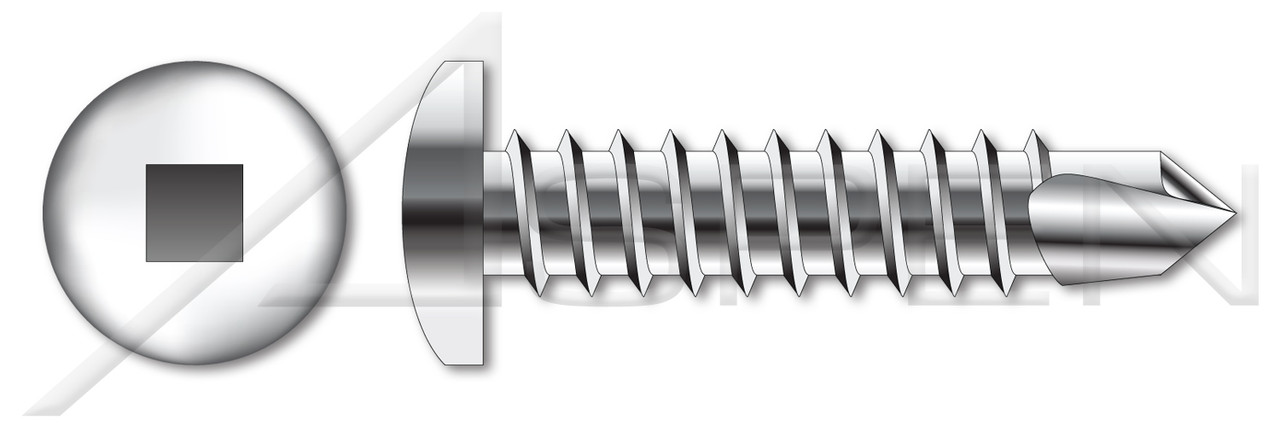

Product Description
- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): #10
- Thread Pitch: 16
- Diameter (Dimension): 0.1875"
- Length (Nominal): 2"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Drilling Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: Internal Square Drive
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Stainless Steel
- Material Grade: AISI 410 Stainless Steel
- Material Processes: Hardened
- Coating: Uncoated
- Standards and Specifications: ASME B18.6.3 and SAE J78
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Category Self-Drilling Screws
Material AISI 410 Stainless Steel
System of Measurement US Units
Drive Style Internal Square Drive
Standards and Specifications ASME B18.6.3 and SAE J78
Coating Process Uncoated
Head Style Pan Head
Length 2"
Diameter/Pitch #10-16
