Product Description
- Double-ended studs are used to join parts when a bolt or screw head is not an option.
- Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
- Diameter (Nominal): M8
- Thread Pitch: 1.25
- Length (Nominal): 55mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Double-Ended Stud with Plain Center
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Screw-in End 1.25 X Diameter
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8.8 Steel
- Coating: Uncoated
- Standards and Specifications: DIN 939

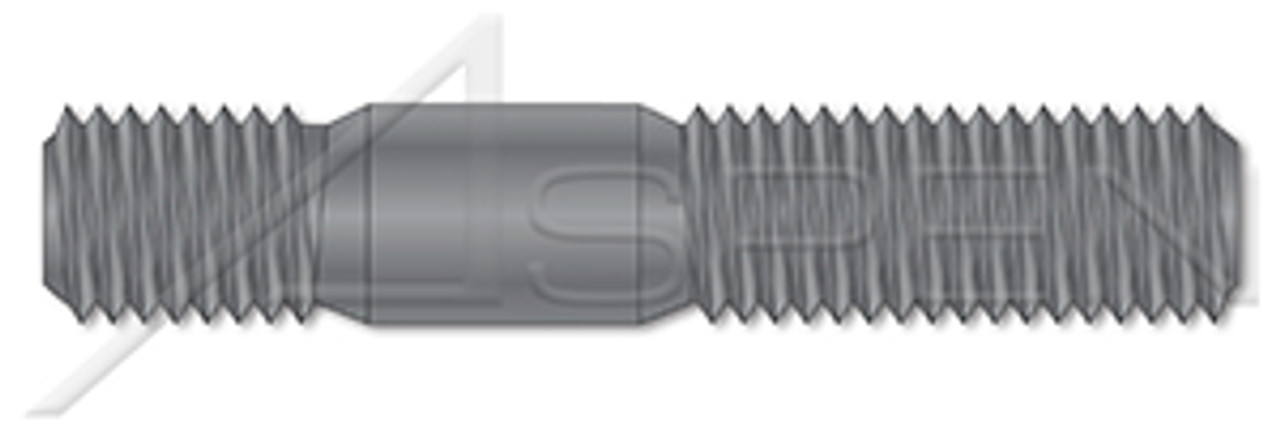

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Length 55mm
Diameter/Pitch M8-1.25
Category Double-Ended Stud with Plain Center
Coating Process Uncoated
Material Class 8.8 Steel
Standards and Specifications DIN 939
System of Measurement Metric
