Product Description
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- An internal hex socket drive is also known as an Allen drive.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M8
- Thread Pitch: 1.25
- Length (Nominal): 55mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 912 / ISO 4762

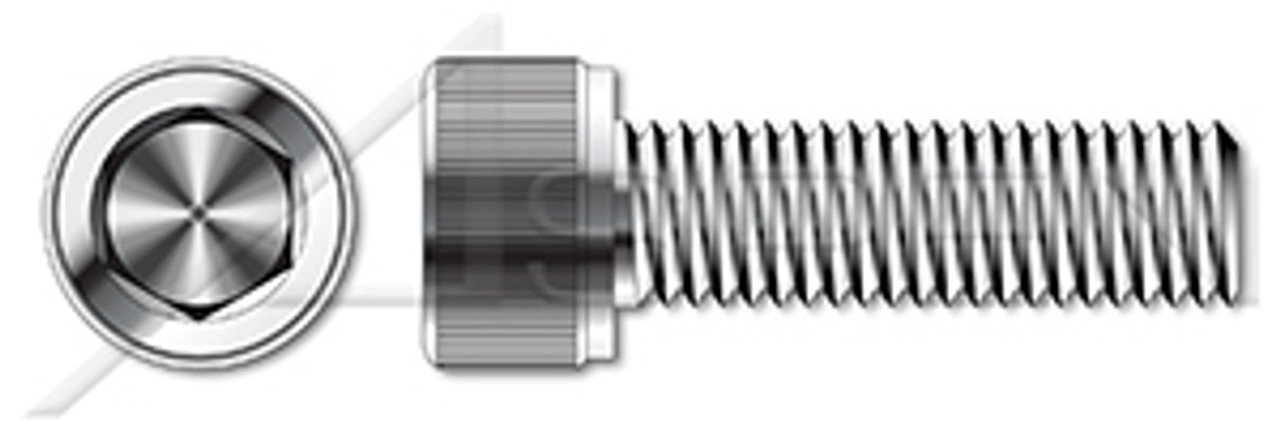

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Length 55mm
Material A2 Stainless Steel
System of Measurement Metric
Head Style Cylindrical Head
Drive Style Hex Socket Drive
Category Socket Head Cap Screws
Coating Process Uncoated
Standards and Specifications DIN 912 / ISO 4762
Diameter/Pitch M8-1.25
