Product Description

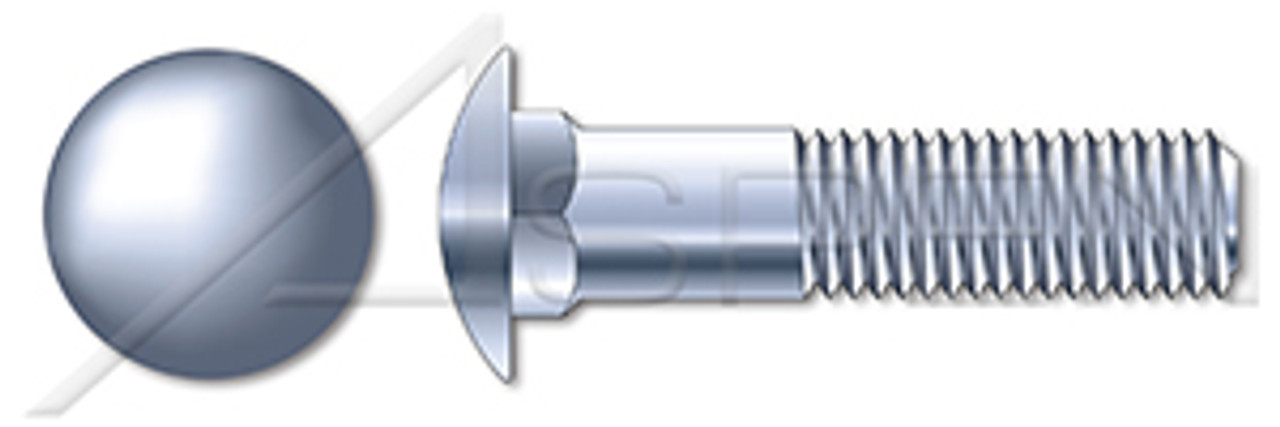

- Also known as coach bolts, are typically used to fasten metal to wood.
- The square neck under the head locks the bolt into place.
- Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
- Can be used as a security fastener. The smooth head prevents unfastening from the head side.
- Diameter (Nominal): M8
- Diameter (Dimension): 8mm
- Thread Pitch: 1.25
- Length (Nominal): 45mm
- Thread Length: 22mm
- Head Diameter: 20.65mm
- Head Height: 4.88mm
- Neck Width: 8.58mm
- Neck Height: 5.6mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Carriage Bolts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Round Head
- Head Style Detail: Square Neck
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8.8 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 603 / ISO 8677
- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Material Class 8.8 Steel
Coating Process Zinc Plated, Clear
Length 45mm
Head Style Round Head
Standards and Specifications DIN 603 / ISO 8677
Diameter/Pitch M8-1.25
System of Measurement Metric
Category Carriage Bolts
