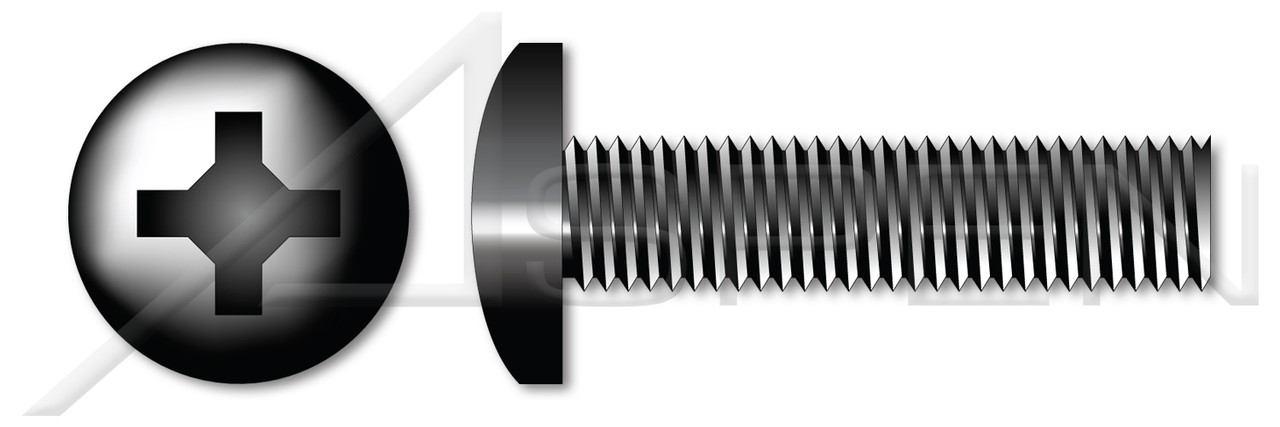

Product Description
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Pan head screws are also known as raised cheese head screws.
- Class 4.8 steel is a low or medium carbon steel with a minimum tensile strength of 420N/mm-2 (Mpa).
- Diameter (Nominal): M8
- Thread Pitch: 1.25
- Diameter (Dimension): 8mm
- Length (Nominal): 30mm
- Thread Length (Nominal): 30mm
- Drive Recess Size: #4
- Drive Recess Width: 9mm
- Drive Recess Depth (Minimum): 4.68mm
- Drive Recess Depth (Maximum): 8.8mm
- Head Diameter: 16mm
- Head Diameter (Minimum): 15.57mm
- Head Diameter (Maximum): 16mm
- Head Height, Overall: 6mm
- Head Height, Overall (Minimum): 5.85mm
- Head Height, Overall (Maximum): 6.15mm
- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 4.8 Steel
- Coating: Oxidized
- Coating Color: Black
- Origin: Origin Undefined
- Standards and Specifications: DIN 7985A / ISO 7045
