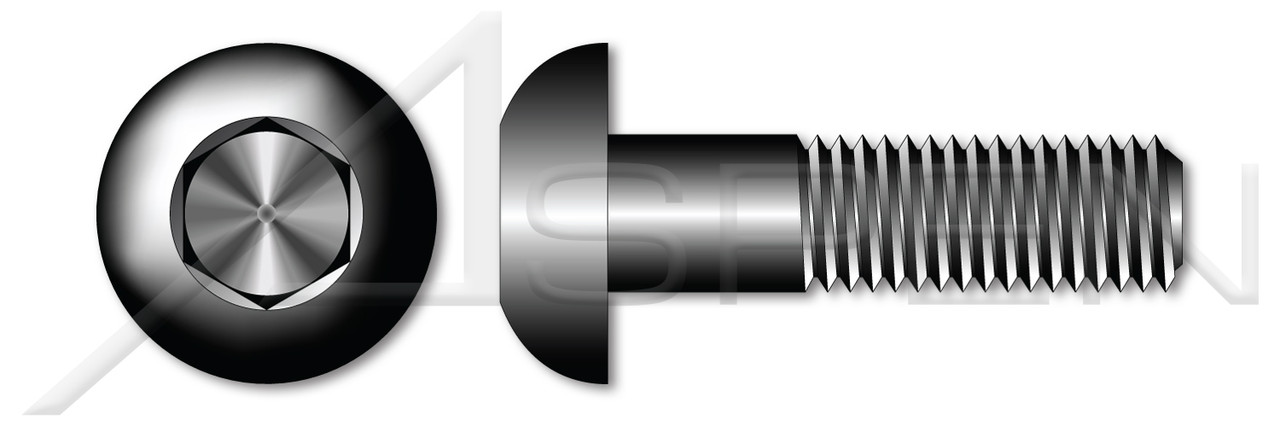

M8-1.25 X 25mm Button Head Cap Screws with Hex Drive, Black Oxide Coated Alloy Steel, ISO 7380-1, Made in U.S.A.

Product Description

• Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
• Button head screws have a wider bearing surface and maintain a low head profile.
• An internal hex socket drive is also known as an Allen drive.
• Alloy steel fasteners are significantly stronger than standard low carbon steel fasteners.

• Diameter (Nominal): M8
• Thread Pitch: 1.25
• Diameter (Dimension): 8mm
• Diameter (Minimum): 7.78mm
• Diameter (Maximum): 8mm
• Length (Nominal): 25mm
• Thread Length (Nominal): 25mm
• Drive Recess Size: 5mm
• Head Diameter: 14mm
• Head Diameter (Minimum): 13.57mm
• Head Diameter (Maximum): 14mm
• Head Height, Overall: 4.4mm
• Head Height, Overall (Minimum): 4.1mm
• Head Height, Overall (Maximum): 4.4mm

• Category: Socket Head Cap Screws
• System of Measurement: Metric
• Brand: Aspen Fasteners
• Head Style: Button Head
• Drive Style: Hex Socket Drive
• Thread Length: Part Thread
• Thread Direction: Right-Hand Thread
• Material: Steel
• Material Grade: Alloy Steel
• Material Processes: Heat Treated
• Coating: Oxidized
• Coating Color: Black
• Origin: Made in U.S.A.
• Standards and Specifications: ISO 7380-1
