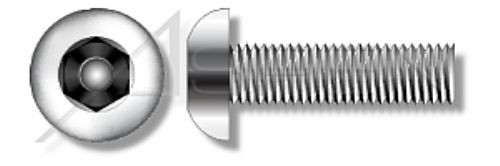

Product Description
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M8
- Thread Pitch: 1.25
- Diameter (Dimension): 8mm
- Length (Nominal): 20mm
- Thread Length (Minimum): 15.4mm
- Recess Size: 5mm
- Head Diameter: 16mm
- Head Height, Overall: 4.6mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Flat Countersunk Head
- Drive Style: Tamper-Resistant Hex Socket Pin Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: Art. 9113
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Category Machine Screws
Diameter/Pitch M8-1.25
Head Style Flat Countersunk Head
Standards and Specifications Art. 9113
Drive Style Tamper-Resistant Hex Socket Pin Drive
Coating Process Uncoated
Material A2 Stainless Steel
System of Measurement Metric
Length 20mm
