Product Description
- Headless set screws are also known as blind screws or grub screws.
- Holds an object in place via friction between the point of the screw and the fastened material.
- An internal hex socket drive is also known as an Allen drive.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Set screws are designed to be used under compressive stress only.
- Diameter (Nominal): M8
- Diameter (Dimension): 8mm
- Thread Pitch: 1.25
- Length (Nominal): 12mm
- Thread Length: 12mm
- Recess Size: 4mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Set Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: Hex Socket Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Cone Point
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 914 / ISO 4027

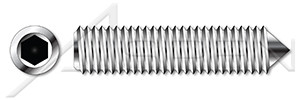

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Drive Style Hex Socket Drive
Category Set Screws
Coating Process Uncoated
Length 12mm
System of Measurement Metric
Material A2 Stainless Steel
Diameter/Pitch M8-1.25
Standards and Specifications DIN 914 / ISO 4027
