Product Description
- Also known as castellated nuts.
- Designed to use a cotter pin that fits through the slots to prevent the nut from loosening.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M8
- Diameter (Dimension): 8mm
- Thread Pitch: 1.25
- Thread Length: 8mm
- Across Flats (Basic): 13mm
- Height (Basic): 8mm
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Thin Slotted Castle Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: Hex Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 937

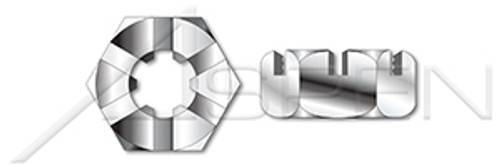

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Coating Process Uncoated
Material A2 Stainless Steel
Category Thin Slotted Castle Nuts
Standards and Specifications DIN 937
System of Measurement Metric
Drive Style Hex Slotted Drive
Diameter/Pitch M8-1.25
