Product Description
- Wide flange on one side acts as an integrated washer to distribute the load of the nut.
- Also known as a serrated face flange locknut.
- Serrations are angled to keep from rotating in the direction that would loosen the fastener.
- Class 10 nuts are designed to be used with screws and bolts of property class 10.9 or lower.
- Diameter (Nominal): M8
- Diameter (Dimension): 8mm
- Thread Pitch: 1.25
- Thread Length: 8mm
- Across Flats (Basic): 13mm
- Height (Basic): 8mm
- Flange Diameter: 17.9mm
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Hex Flange Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Locking Serrations
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 10 Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 6923

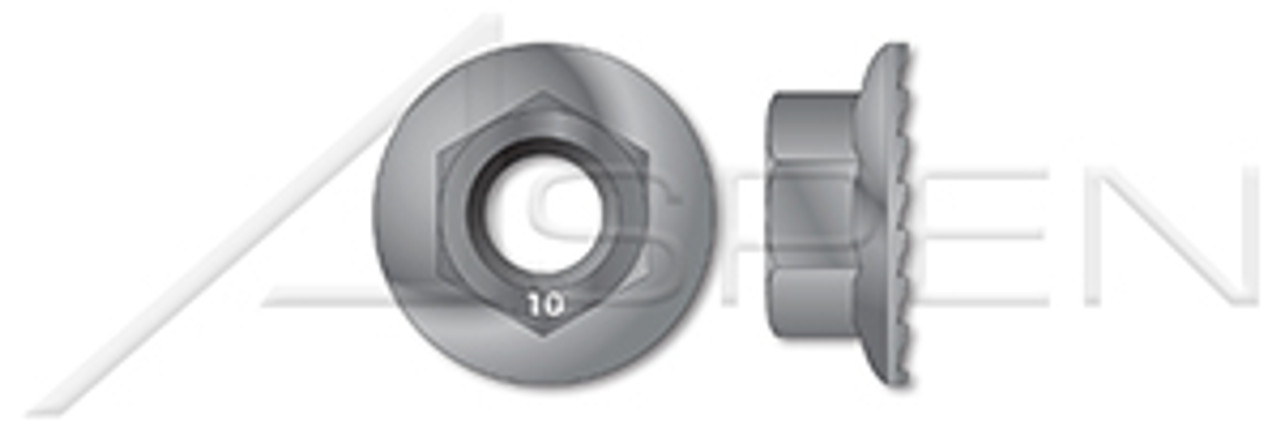

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Coating Process Zinc Plated, Clear
Category Hex Flange Nuts
Standards and Specifications DIN 6923
Material Class 10 Steel
Diameter/Pitch M8-1.25
System of Measurement Metric
Drive Style External Hex Drive
