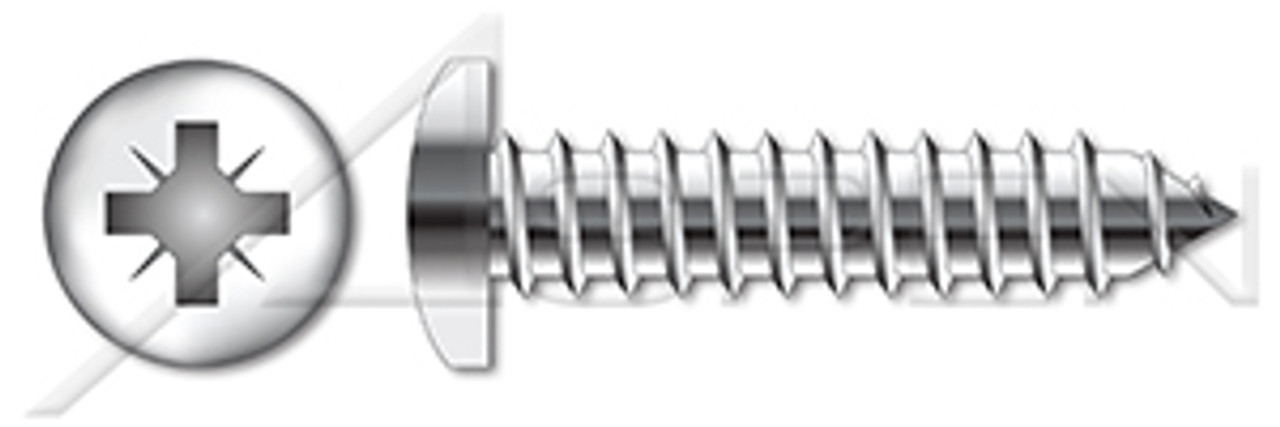

Product Description
- Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
- Pan head screws are also known as raised cheese head screws.
- A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M6.3
- Diameter (Dimension): 6.3mm
- Length (Nominal): 38mm
- Thread Length: 38mm
- Recess Size: #3
- Head Diameter: 12.5mm
- Head Height: 4.55mm
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Tapping Sheet Metal Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Pozidriv Type Z
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 7981 / ISO 7049
- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
System of Measurement Metric
Diameter/Pitch M6.3
Category Self-Tapping Sheet Metal Screws
Material A2 Stainless Steel
Coating Process Uncoated
Head Style Pan Head
Length 38mm
Drive Style Cruciform Recess Drive
Standards and Specifications DIN 7981 / ISO 7049
