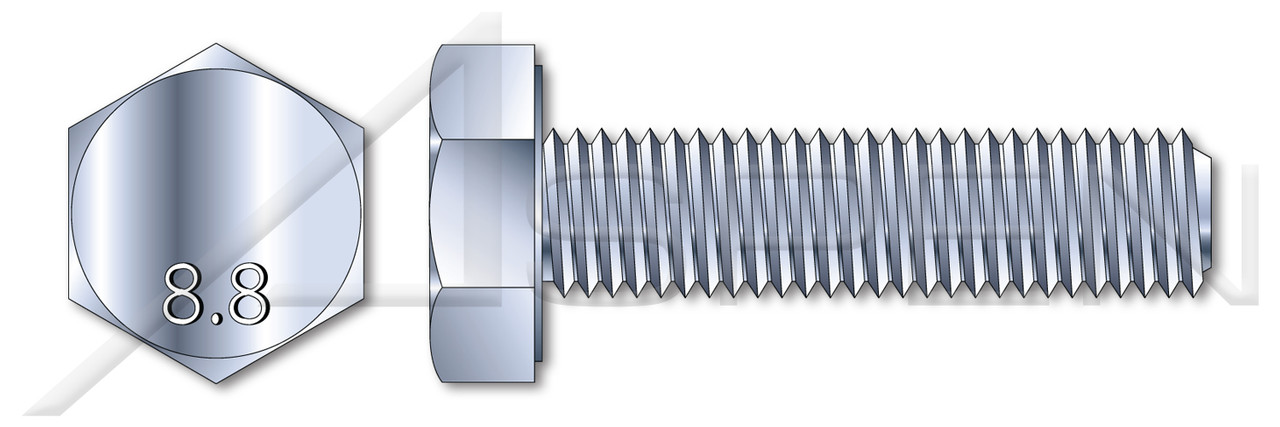

Product Description
- Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.
- Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
- The washer face under the head provides a precision bearing surface.
- The chamfered point improves engagement with a nut or pre-tapped hole.
- Diameter (Nominal): M6
- Thread Pitch: 1.0
- Diameter (Dimension): 6mm
- Length (Nominal): 16mm
- Thread Length (Nominal): 16mm
- Across Flats (Basic): 10mm
- Across Flats (Minimum): 9.78mm
- Across Flats (Maximum): 10mm
- Head Height, Overall: 4mm
- Head Height, Overall (Minimum): 3.85mm
- Head Height, Overall (Maximum): 4.15mm
- Category: Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Hex Head
- Head Style Detail: Washer Face
- Drive Style: External Hex Drive
- Pitch: Coarse Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Chamfered Point
- Material: Steel
- Material Grade: Class 8.8 Steel
- Material Processes: Quenched and Tempered
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: DIN 933 / ISO 4017
Product Videos
Custom Field
Across Flats (Basic) 10mm
Across Flats (Maximum) 10mm
Across Flats (Minimum) 9.78mm
Brand Aspen Fasteners
Category Cap Screws
Coating Zinc Plated
Coating Color Clear
Diameter (Dimension) 6mm
Diameter (Nominal) M6
Drive Style External Hex Drive
Head Height, Overall 4mm
Head Height, Overall (Maximum) 4.15mm
Head Height, Overall (Minimum) 3.85mm
Head Style Hex Head
Head Style Detail Washer Face
Length (Nominal) 16mm
Material Steel
Material Grade Class 8.8 Steel
Material Processes Quenched and Tempered
Order Machine Thread Fasteners
Origin Origin Undefined
POS ME001-6X16-001000,ME001-6X16-002000,ME001-610X16-00900
Pitch Coarse Thread
Point Chamfered Point
Product Class Externally Threaded Fasteners
Standards and Specifications DIN 933 / ISO 4017
System of Measurement Metric
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Length (Nominal) 16mm
Thread Pitch 1.0
