Product Description
- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
- Pan head screws are also known as raised cheese head screws.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M5.5
- Diameter (Dimension): 5.5mm
- Length (Nominal): 16mm
- Recess Size: #3
- Head Diameter: 11mm
- Head Height: 4mm
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Drilling Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 7504 Type M

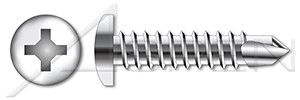

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Coating Process Uncoated
System of Measurement Metric
Drive Style Cruciform Recess Drive
Material A4 Stainless Steel
Standards and Specifications DIN 7504 Type M
Head Style Pan Head
Length 16mm
Category Self-Drilling Screws
Diameter/Pitch M5.5
