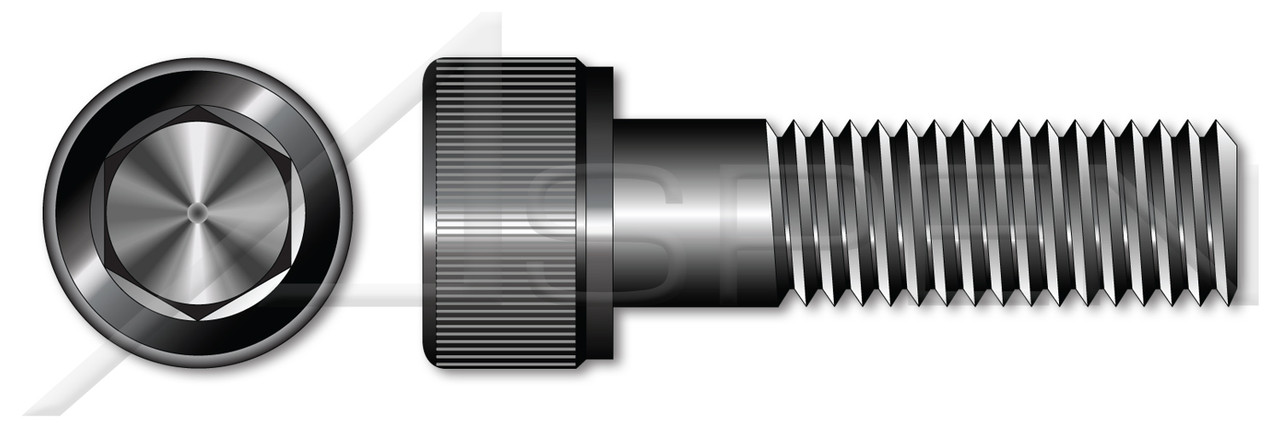

M5-0.8 X 45mm DIN 912 / ISO 4762, Metric, Hex Socket Head Cap Screws, Class 12.9 Steel, Plain, Made in U.S.A.

Product Description

• Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
• A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
• An internal hex socket drive is also known as an Allen drive.
• Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).

• Diameter (Nominal): M5
• Thread Pitch: 0.8
• Diameter (Dimension): 5mm
• Diameter (Minimum): 4.82mm
• Diameter (Maximum): 5mm
• Length (Nominal): 45mm
• Thread Length (Nominal): 22mm
• Drive Recess Size: 4mm
• Drive Recess Width: 4mm
• Drive Recess Depth: 2.5mm
• Head Diameter: 8.5mm
• Head Diameter (Minimum): 8.28mm
• Head Diameter (Maximum): 8.5mm
• Head Height, Overall: 5mm
• Head Height, Overall (Minimum): 4.82mm
• Head Height, Overall (Maximum): 5mm

• Category: Socket Head Cap Screws
• System of Measurement: Metric
• Brand: Aspen Fasteners
• Head Style: Cylindrical Head
• Drive Style: Hex Socket Drive
• Thread Direction: Right-Hand Thread
• Material: Steel
• Material Grade: Class 12.9 Steel
• Coating: Uncoated
• Origin: Made in U.S.A.
• Standards and Specifications: DIN 912 / ISO 4762
