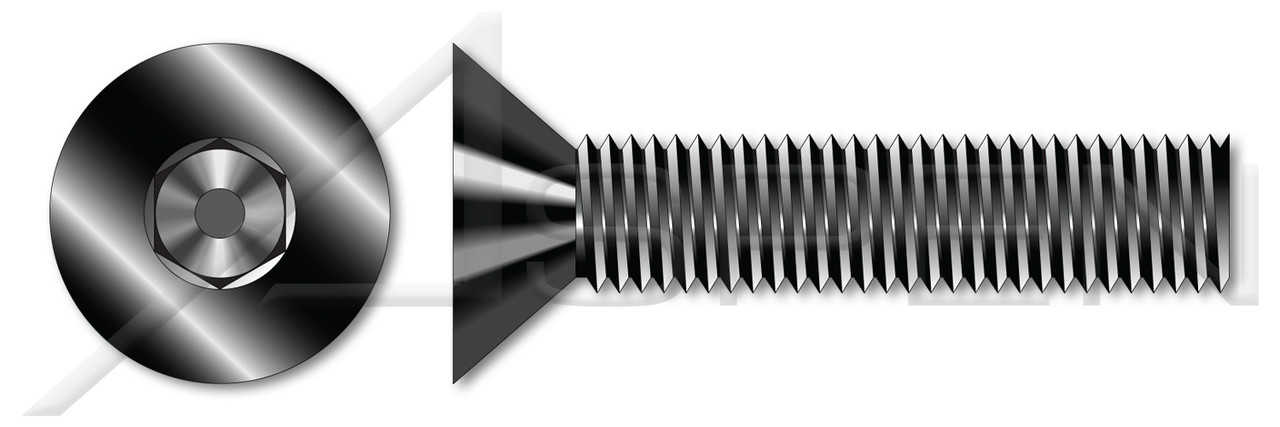

Product Description
- Superior quality parts by Holo-Krome, made in the U.S.A.
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- An internal hex socket drive is also known as an Allen drive.
- Flat socket cap screws are precision machine screws used in machining, die fixturing and clamping.
- Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
- Diameter (Nominal): M5
- Diameter (Dimension): 5mm
- Thread Pitch: 0.8
- Length (Nominal): 30mm
- Recess Size: 3mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Holo-Krome®
- Head Style: Flat Countersunk Head
- Head Style Detail: 90 Degree Countersink
- Drive Style: Hex Socket Drive
- Threading: Thread Class ANSI B1.13M
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 12.9 Steel
- Material Processes: Heat Treated
- Coating: Oxidized
- Coating Color: Black
- Origin: Made in U.S.A.
- Standards and Specifications: DIN 7991 / ISO 10642
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Category Socket Head Cap Screws
Head Style Flat Countersunk Head
System of Measurement Metric
Coating Process Oxidized, Black
Material Class 12.9 Steel
Length 30mm
Diameter/Pitch M5-0.8
Drive Style Hex Socket Drive
Standards and Specifications DIN 7991 / ISO 10642
