Product Description
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- An internal hex socket drive is also known as an Allen drive.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
- Diameter (Nominal): M5
- Thread Pitch: 0.8
- Length (Nominal): 22mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Pitch: Coarse Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 12.9 Steel
- Coating: Uncoated
- Standards and Specifications: DIN 912 / ISO 4762

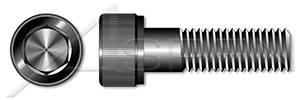

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Drive Style Hex Socket Drive
Category Socket Head Cap Screws
System of Measurement Metric
Standards and Specifications DIN 912 / ISO 4762
Diameter/Pitch M5-0.8
Material Class 12.9 Steel
Head Style Cylindrical Head
Length 22mm
Coating Process Uncoated
