Product Description
- Also known as coach bolts, are typically used to fasten metal to wood.
- The square neck under the head locks the bolt into place.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Can be used as a security fastener. The smooth head prevents unfastening from the head side.
- Diameter (Nominal): M5
- Diameter (Dimension): 5mm
- Thread Pitch: 0.8
- Length (Nominal): 110mm
- Thread Length: 105.9mm
- Head Diameter: 13.55mm
- Head Height: 3.3mm
- Neck Width: 5.48mm
- Neck Height: 4.1mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Carriage Bolts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Round Head
- Head Style Detail: Square Neck
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 603 / ISO 8677

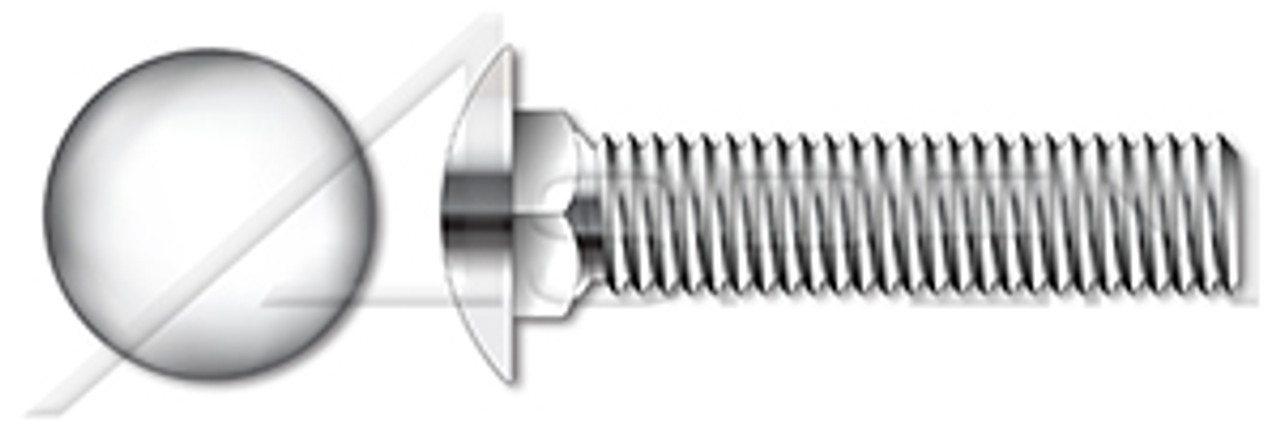

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Standards and Specifications DIN 603 / ISO 8677
Diameter/Pitch M5-0.8
Head Style Round Head
Material A2 Stainless Steel
System of Measurement Metric
Coating Process Uncoated
Category Carriage Bolts
Length 110mm
