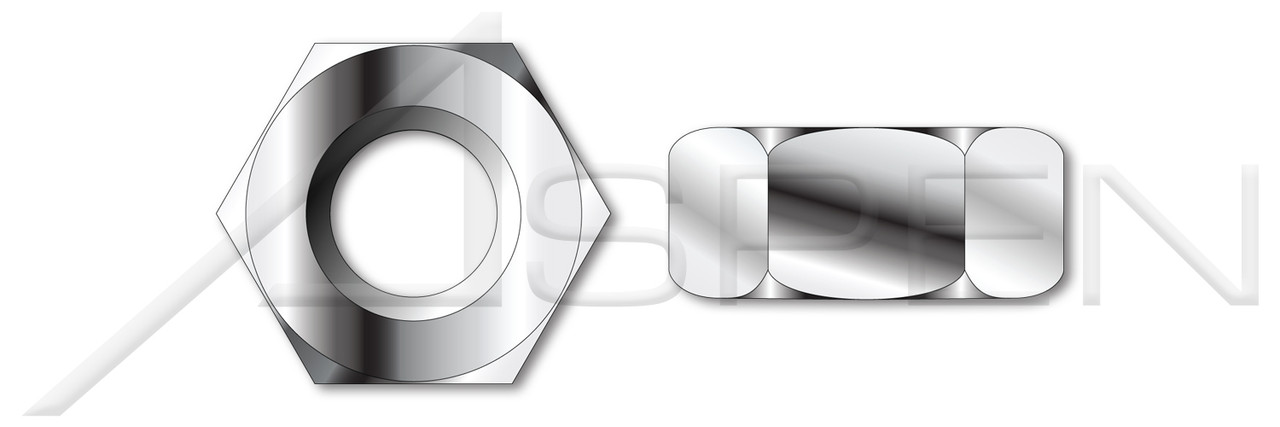

Product Description
- Hex finished nuts are considered the most commonly used hex nuts.
- DIN 934 hex nuts are the most commonly used metric hex nuts.
- Also known as regular hex nuts.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M5
- Thread Pitch: 0.8
- Diameter (Dimension): 5mm
- Thread Length (Nominal): 4mm
- Across Flats (Basic): 8mm
- Across Flats (Minimum): 7.78mm
- Across Flats (Maximum): 8mm
- Height (Basic): 4mm
- Height (Minimum): 3.7mm
- Height (Maximum): 4mm
- Washer Face Diameter (Minimum): 6.8mm
- Category: Hex Finished Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 934 / ISO 4032
Product Videos
Custom Field
Across Flats (Minimum) 7.78mm
Origin Origin Undefined
Drive Style External Hex Drive
Thread Length Full Thread
Diameter (Dimension) 5mm
Order Nuts
Material Grade A2 Stainless Steel
Thread Direction Right-Hand Thread
Material Stainless Steel
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/ME013-508
Product Class Internally Threaded Fasteners
Across Flats (Basic) 8mm
Brand Aspen Fasteners
Thread Length (Nominal) 4mm
Diameter (Nominal) M5
Category Hex Finished Nuts
Height (Minimum) 3.7mm
Standards and Specifications DIN 934 / ISO 4032
POS ME013-508-001200,ME013-508-009000,ME013-508-01200
Coating Uncoated
Across Flats (Maximum) 8mm
Height (Basic) 4mm
Thread Pitch 0.8
Height (Maximum) 4mm
System of Measurement Metric
cad_3d_file_url https||//3d.aspenfasteners.com/assets/obj/ME013-508.zip
