Product Description
- Jam nuts are also known as low form nuts or thin nuts.
- Jam nuts are about half the height of regular finished nuts.
- Diameter (Nominal): M5
- Diameter (Dimension): 5mm
- Thread Pitch: 0.8
- Thread Length: 2.7mm
- Across Flats (Basic): 8mm
- Height (Basic): 2.7mm
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Thin Hex Jam Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 4 Steel
- Coating: Uncoated
- Standards and Specifications: DIN 439B

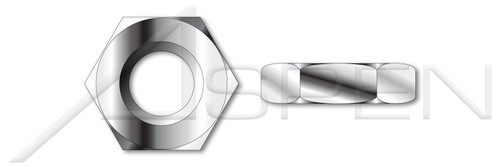

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Material Class 4 Steel
Drive Style External Hex Drive
Coating Process Uncoated
System of Measurement Metric
Diameter/Pitch M5-0.8
Category Thin Hex Jam Nuts
Standards and Specifications DIN 439B
