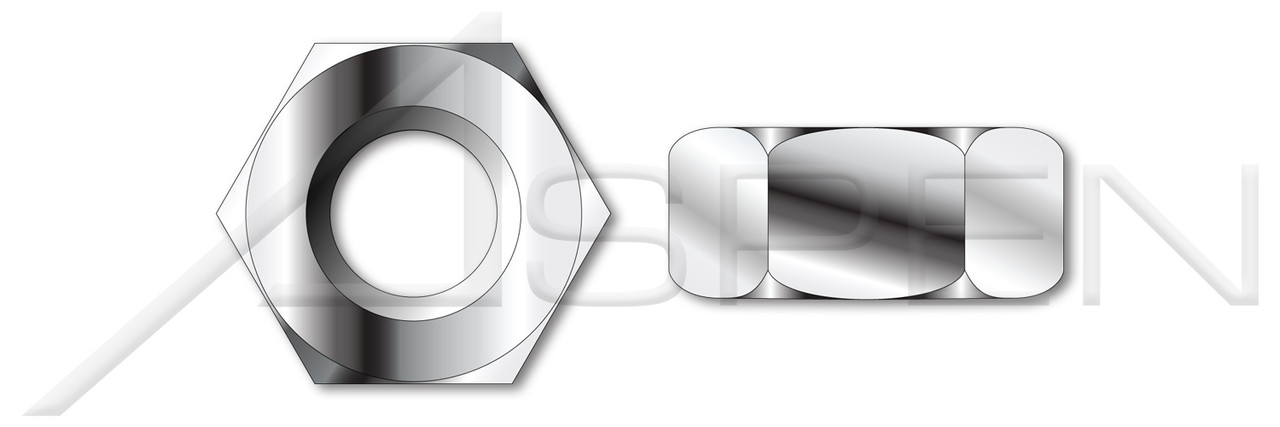

Product Description
- Hex finished nuts are considered the most commonly used hex nuts.
- DIN 934 hex nuts are the most commonly used metric hex nuts.
- Also known as regular hex nuts.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M42
- Thread Pitch: 4.5
- Diameter (Dimension): 42mm
- Thread Length (Nominal): 34mm
- Across Flats (Basic): 65mm
- Across Flats (Minimum): 63.1mm
- Across Flats (Maximum): 65mm
- Height (Basic): 34mm
- Height (Minimum): 32.4mm
- Height (Maximum): 34mm
- Washer Face Diameter (Minimum): 60.6mm
- Category: Hex Finished Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 934 / ISO 4032
Product Videos
Custom Field
System of Measurement Metric
Thread Pitch 4.5
Thread Length (Nominal) 34mm
Diameter (Dimension) 42mm
cad_3d_file_url https||//3d.aspenfasteners.com/assets/obj/ME013-4245.zip
Material Stainless Steel
Height (Basic) 34mm
Brand Aspen Fasteners
Across Flats (Basic) 65mm
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/ME013-4245
Product Class Internally Threaded Fasteners
Height (Maximum) 34mm
Drive Style External Hex Drive
Category Hex Finished Nuts
Thread Length Full Thread
Standards and Specifications DIN 934 / ISO 4032
POS ME013-4245-00002,ME013-4245X34X65-000010,ME013-4545X36X70-000010
Material Grade A2 Stainless Steel
Height (Minimum) 32.4mm
Diameter (Nominal) M42
Across Flats (Minimum) 63.1mm
Origin Origin Undefined
Thread Direction Right-Hand Thread
Order Nuts
Across Flats (Maximum) 65mm
Coating Uncoated
