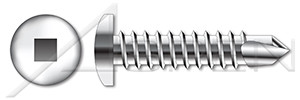

Product Description
- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
- Pan head screws are also known as raised cheese head screws.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M4.2
- Diameter (Dimension): 4.2mm
- Length (Nominal): 19mm
- Recess Size: #2
- Head Diameter: 8.2mm
- Head Height: 3.05mm
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Drilling Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: Internal Square Drive
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 7504 Type M
- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Material A2 Stainless Steel
Drive Style Internal Square Drive
Head Style Pan Head
System of Measurement Metric
Length 19mm
Coating Process Uncoated
Diameter/Pitch M4.2
Standards and Specifications DIN 7504 Type M
Category Self-Drilling Screws
