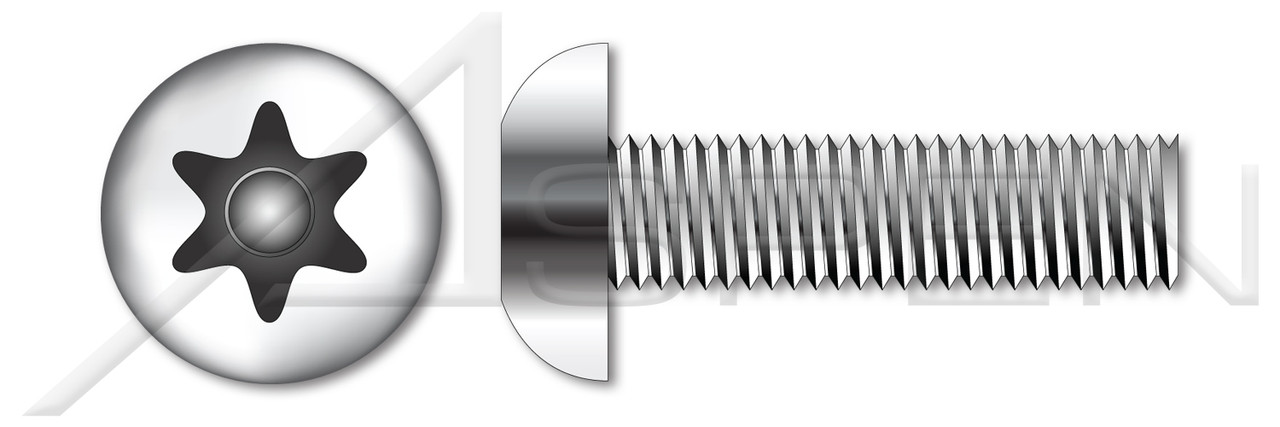

Product Description
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M4
- Thread Pitch: 0.7
- Diameter (Dimension): 4mm
- Length (Nominal): 50mm
- Thread Length (Minimum): 50mm
- Recess Size: T20
- Head Diameter: 7.6mm
- Head Height, Overall: 2.2mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Button Head
- Drive Style: Tamper-Resistant 6Lobe Pin Drive
- Drive Detail: Torx® Generic Alternative
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: Art. 9121
- Torx® and Torx Plus® are trademarks of Acument Global Technologies Inc. (Acument). Unless specified otherwise, Acument has not licensed the use of these trademarks to Aspen Fasteners Inc.
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Category Machine Screws
Material A2 Stainless Steel
Standards and Specifications Art. 9121
System of Measurement Metric
Coating Process Uncoated
Head Style Button Head
Length 50mm
Diameter/Pitch M4-0.7
Drive Style Tamper-Resistant 6Lobe Pin Drive
