Product Description
- Also known as square machine screw nuts.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M4
- Diameter (Dimension): 4mm
- Thread Pitch: 0.7
- Thread Length: 2.2mm
- Across Flats (Basic): 7mm
- Height (Basic): 2.2mm
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Thin Square Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: External Square Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 562

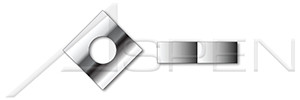

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Standards and Specifications DIN 562
Coating Process Uncoated
Category Thin Square Nuts
Drive Style External Square Drive
Material A4 Stainless Steel
Diameter/Pitch M4-0.7
System of Measurement Metric
