Product Description
- Eye bolts are bolts with a loop used to attach a sling or other hardware to be lifted.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M36
- Thread Pitch: 4.0
- Length (Nominal): 54mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Lifting Eye Bolts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Lifting Ring Head
- Head Style Detail: With Shoulder
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Material Processes: Drop Forged
- Coating: Uncoated
- Standards and Specifications: DIN 580 / ISO 3266

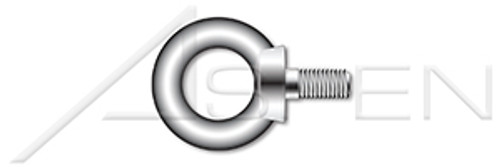

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Diameter/Pitch M36-4.0
Coating Process Uncoated
Category Lifting Eye Bolts
System of Measurement Metric
Head Style Lifting Ring Head
Material A4 Stainless Steel
Standards and Specifications DIN 580 / ISO 3266
Length 54mm
