Product Description
- Also known as a castellated nut.
- Lock the nut to a mated bolt by using a pin or wire threaded through the bolt and slots on the nut.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M30
- Thread Pitch: 3.5
- Height (Basic): 33mm
- Across Flats (Basic): 46mm
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Slotted Castle Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: Hex Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 935 / ISO 7035

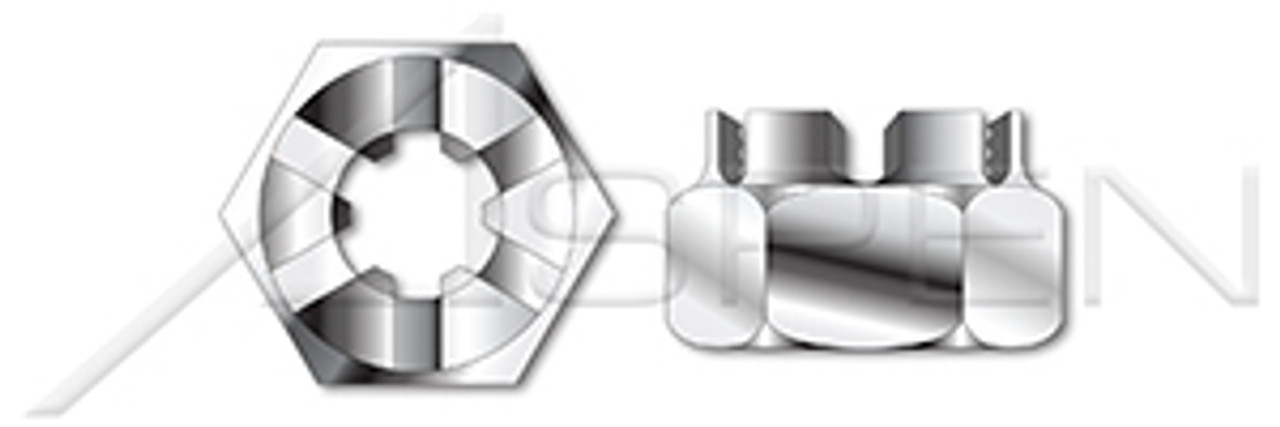

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Diameter/Pitch M30-3.5
Category Slotted Castle Nuts
Coating Process Uncoated
System of Measurement Metric
Drive Style Hex Slotted Drive
Material A4 Stainless Steel
Standards and Specifications DIN 935 / ISO 7035
