Product Description
- Use a curved spring lock washer if you have a surface that cannot be damaged.
- Curved spring lock washers take advantage of the attempt of the washer to return to its original shape.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M3
- Diameter (Dimension): 3mm
- Inside Diameter (Nominal): 3.1mm
- Outside Diameter (Nominal): 6.2mm
- Thickness (Nominal): 0.7mm
- Product Class: Washers
- Order: Lock Washers
- Category: Curved Spring Lock Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 128 Type A

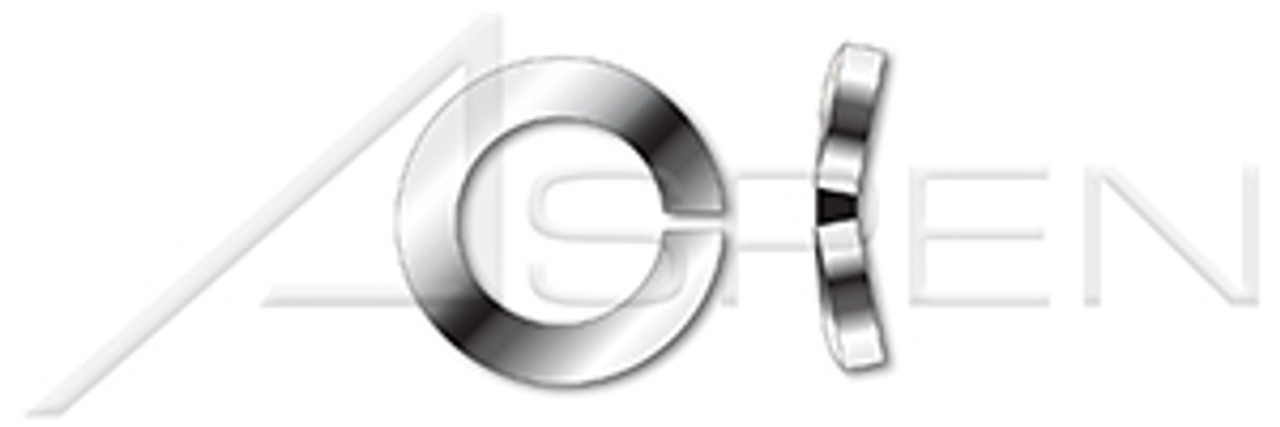

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Coating Process Uncoated
Outer Diameter 6.2mm
Category Curved Spring Lock Washers
Diameter/Pitch M3
Standards and Specifications DIN 128 Type A
System of Measurement Metric
Inner Diameter 3.1mm
Thickness 0.7mm
Material A2 Stainless Steel
