Product Description
- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M3.5
- Diameter (Dimension): 3.5mm
- Length (Nominal): 25mm
- Recess Size: #2
- Head Diameter: 7mm
- Head Height: 2.25mm
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Drilling Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Flat Countersunk Head
- Head Style Detail: 80 Degree Countersink
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 7504 Type O

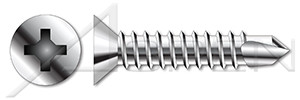

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Category Self-Drilling Screws
Standards and Specifications DIN 7504 Type O
Coating Process Uncoated
Length 25mm
Material A2 Stainless Steel
Diameter/Pitch M3.5
System of Measurement Metric
Drive Style Cruciform Recess Drive
Head Style Flat Countersunk Head
