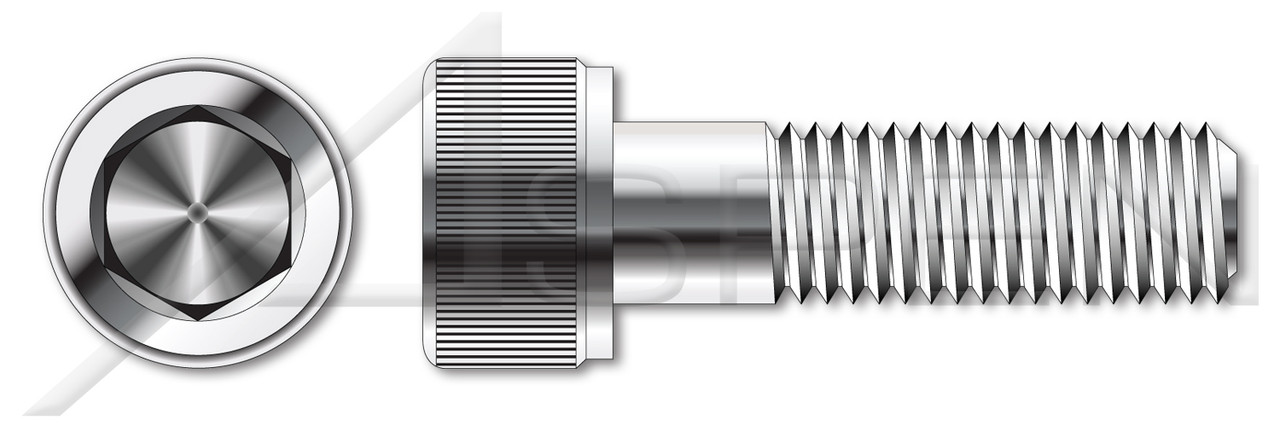

Product Description
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- An internal hex socket drive is also known as an Allen drive.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M27
- Thread Pitch: 3.0
- Length (Nominal): 90mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 912 / ISO 4762
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Standards and Specifications DIN 912 / ISO 4762
Drive Style Hex Socket Drive
Coating Process Uncoated
Diameter/Pitch M27-3.0
Category Socket Head Cap Screws
System of Measurement Metric
Length 90mm
Head Style Cylindrical Head
Material A2 Stainless Steel
