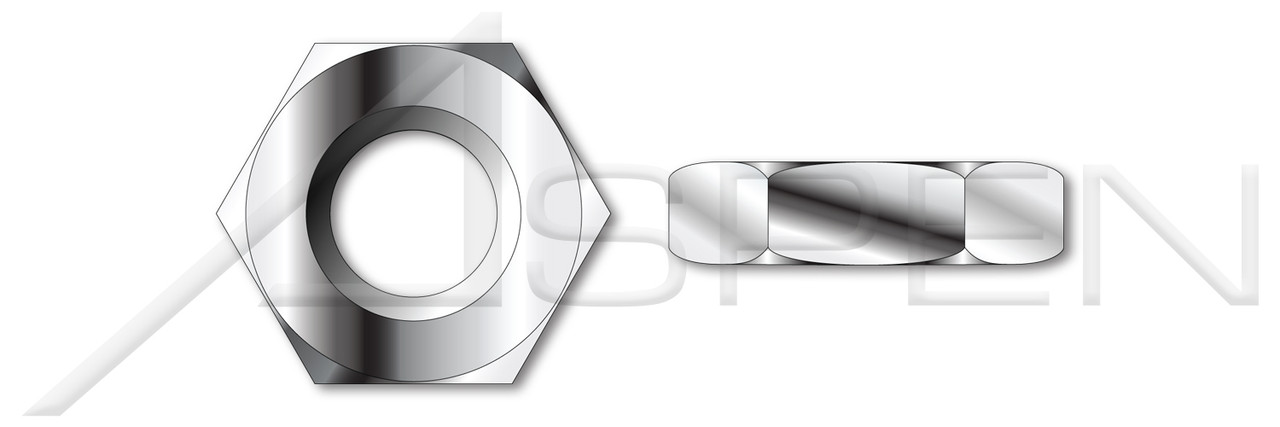

Product Description
- Jam nuts are also known as low form nuts or thin nuts.
- Jam nuts are about half the height of regular finished nuts.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M27
- Diameter (Dimension): 27mm
- Thread Pitch: 3.0
- Thread Length (Minimum): 13.5mm
- Across Flats (Basic): 41mm
- Height (Basic): 13.5mm
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Thin Hex Jam Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 439B
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Diameter/Pitch M27-3.0
System of Measurement Metric
Category Thin Hex Jam Nuts
Standards and Specifications DIN 439B
Coating Process Uncoated
Drive Style External Hex Drive
Material A4 Stainless Steel
