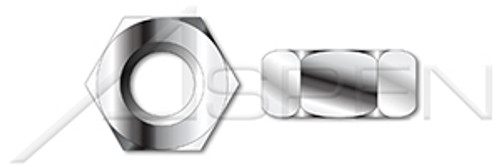

Product Description
- Hex finished nuts are considered the most commonly used hex nuts.
- DIN 934 hex nuts are the most commonly used metric hex nuts.
- Also known as regular hex nuts.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M20
- Thread Pitch: 2.5
- Diameter (Dimension): 20mm
- Thread Length (Nominal): 16mm
- Across Flats (Basic): 30mm
- Across Flats (Minimum): 29.16mm
- Across Flats (Maximum): 30mm
- Height (Basic): 16mm
- Height (Minimum): 14.9mm
- Height (Maximum): 16mm
- Washer Face Diameter (Minimum): 28.2mm
- Category: Hex Finished Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 934 / ISO 4032
