Product Description
- Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
- Oval countersunk head screws are also known as raised countersunk head screws.
- A 6-lobe recess is also known as a hexalobular internal drive.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M2.9
- Diameter (Dimension): 2.9mm
- Length (Nominal): 22mm
- Thread Length: 20.3mm
- Recess Size: T1
- Head Diameter: 5.5mm
- Head Height: 1.7mm
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Tapping Sheet Metal Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Oval Countersunk Head
- Head Style Detail: 80 Degree Countersink
- Drive Style: 6-Lobe Drive
- Drive Detail: Torx Alternative
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 7983 / ISO 7051
- Torx® and Torx Plus® are trademarks of Acument Global Technologies Inc. Unless specified, our screws are not necessarily authorized or manufactured by Acument Global Technologies Inc.

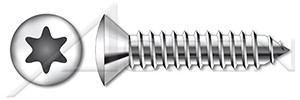

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
System of Measurement Metric
Category Self-Tapping Sheet Metal Screws
Standards and Specifications DIN 7983 / ISO 7051
Material A4 Stainless Steel
Head Style Oval Countersunk Head
Coating Process Uncoated
Length 22mm
Diameter/Pitch M2.9
Drive Style 6-Lobe Drive
