Product Description
- DIN 125 / ISO 7089 are standard commercial metric flat washers.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- The nominal diameter is the bolt size to use for this flat washer.
- Diameter (Nominal): M2.5
- Inside Diameter (Nominal): 2.7mm
- Outside Diameter (Nominal): 6mm
- Thickness (Nominal): 0.5mm
- Product Class: Washers
- Order: Flat Washers
- Category: Standard Flat Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Chamfered
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Hardness Rating: Vickers HV 140-250
- Standards and Specifications: DIN 125 Type A / ISO 7089

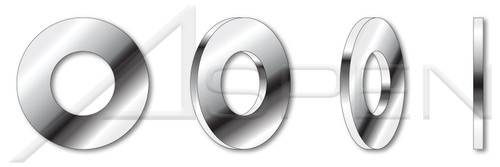

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Material A2 Stainless Steel
Coating Process Uncoated
Category Standard Flat Washers
Inner Diameter 2.7mm
Thickness 0.5mm
Outer Diameter 6mm
System of Measurement Metric
Diameter/Pitch M2.5
Standards and Specifications DIN 125 Type A / ISO 7089
