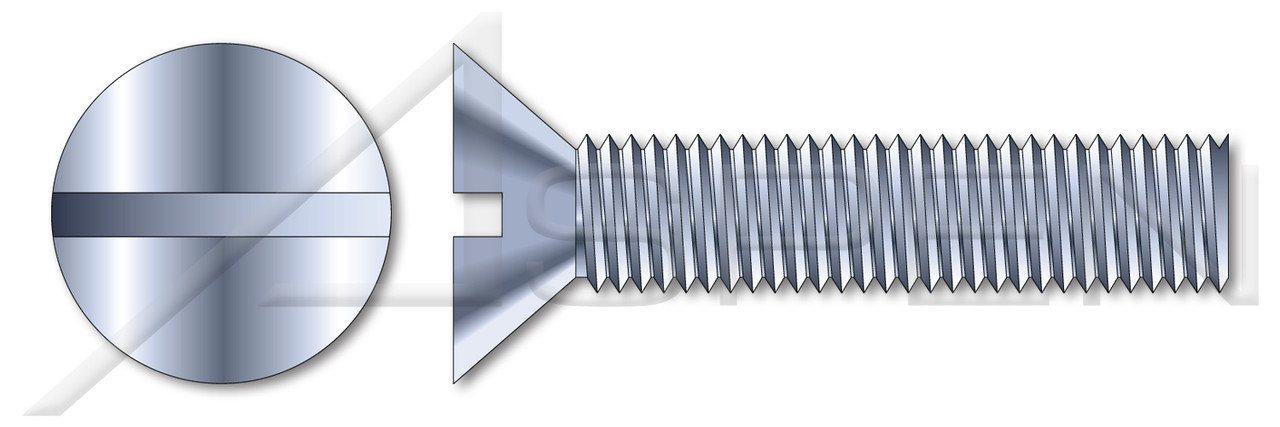

Product Description
- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Class 4.8 steel is a low or medium carbon steel with a minimum tensile strength of 420N/mm-2 (Mpa).
- Diameter (Nominal): M2
- Diameter (Dimension): 2mm
- Thread Pitch: 0.4
- Length (Nominal): 4mm
- Thread Length (Minimum): 2.8mm
- Head Diameter: 3.8mm
- Head Height, Overall: 1.2mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Flat Countersunk Head
- Head Style Detail: 90 Degree Countersink
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 4.8 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 963 / ISO 2009
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Category Machine Screws
Material Class 4.8 Steel
System of Measurement Metric
Drive Style Slotted Drive
Head Style Flat Countersunk Head
Length 4mm
Coating Process Zinc Plated, Clear
Diameter/Pitch M2-0.4
Standards and Specifications DIN 963 / ISO 2009
