Product Description

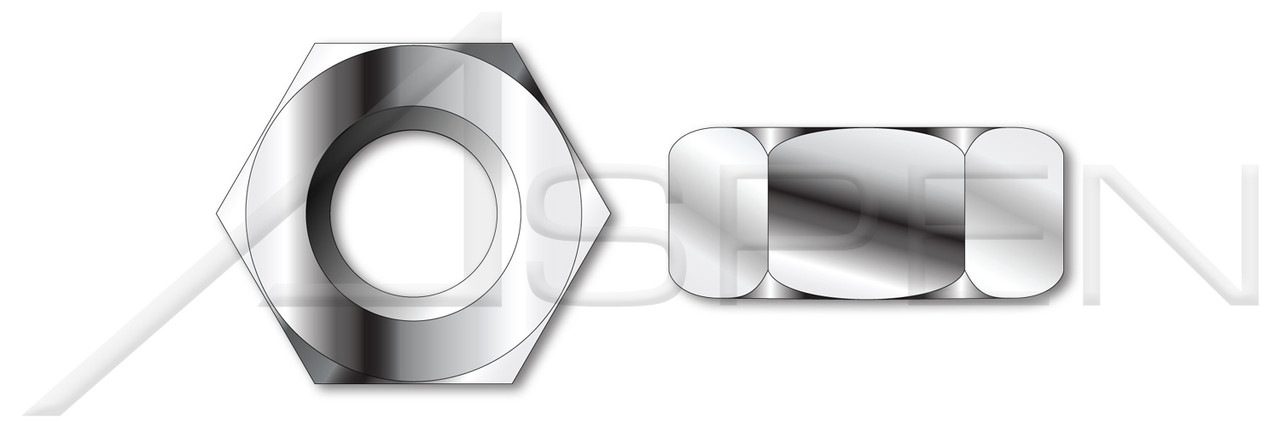

- Hex finished nuts are considered the most commonly used hex nuts.
- DIN 934 hex nuts are the most commonly used metric hex nuts.
- Also known as regular hex nuts.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M2
- Thread Pitch: 0.4
- Diameter (Dimension): 2mm
- Thread Length (Nominal): 1.6mm
- Across Flats (Basic): 4mm
- Across Flats (Minimum): 3.82mm
- Across Flats (Maximum): 4mm
- Height (Basic): 1.6mm
- Height (Minimum): 1.35mm
- Height (Maximum): 1.6mm
- Washer Face Diameter (Minimum): 3.2mm
- Category: Hex Finished Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 934 / ISO 4032
Product Videos
Custom Field
System of Measurement Metric
Diameter (Dimension) 2mm
Diameter (Nominal) M2
Across Flats (Minimum) 3.82mm
Across Flats (Maximum) 4mm
Height (Maximum) 1.6mm
Height (Basic) 1.6mm
Product Class Internally Threaded Fasteners
Order Nuts
Standards and Specifications DIN 934 / ISO 4032
Coating Uncoated
Origin Origin Undefined
Material Stainless Steel
Category Hex Finished Nuts
Drive Style External Hex Drive
cad_3d_viewer_url https||//3d.aspenfasteners.com/viewer/?cad_model=obj/ME013-204
Thread Pitch 0.4
Across Flats (Basic) 4mm
cad_3d_file_url https||//3d.aspenfasteners.com/assets/obj/ME013-204.zip
Material Grade A2 Stainless Steel
POS ME013-204-001900,ME013-204-010000,ME013-204-01900,ME013-204X16X4-006000
Thread Length Full Thread
Height (Minimum) 1.35mm
Brand Aspen Fasteners
Thread Length (Nominal) 1.6mm
Thread Direction Right-Hand Thread
