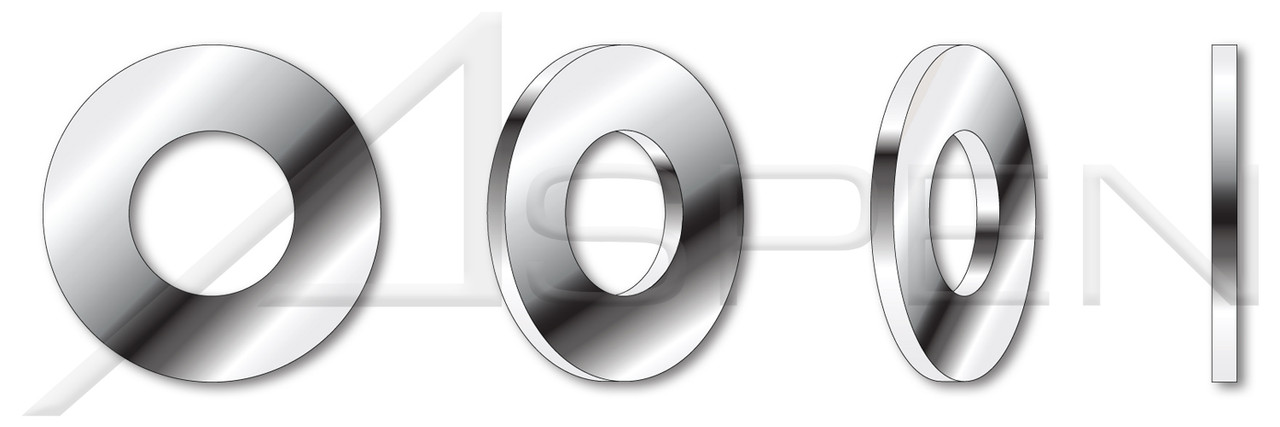

Product Description
- DIN 125 / ISO 7089 are standard commercial metric flat washers.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- The nominal diameter is the bolt size to use for this flat washer.
- Diameter (Nominal): M16
- Diameter (Dimension): 16mm
- Inside Diameter (Nominal): 17mm
- Outside Diameter (Nominal): 30mm
- Thickness (Nominal): 3mm
- Product Class: Washers
- Order: Flat Washers
- Category: Standard Flat Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Not Chamfered
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 125 Type A / ISO 7089
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Inner Diameter 17mm
Category Standard Flat Washers
System of Measurement Metric
Standards and Specifications DIN 125 Type A / ISO 7089
Outer Diameter 30mm
Thickness 3mm
Coating Process Uncoated
Material A4 Stainless Steel
Diameter/Pitch M16
