Product Description
- Wide flange on one side acts as an integrated washer to distribute the load of the nut.
- Also known as a serrated face flange locknut.
- Serrations are angled to keep from rotating in the direction that would loosen the fastener.
- Class 8 nuts are designed to be used with screws and bolts of property class 8.8 or lower.
- Diameter (Nominal): M16
- Diameter (Dimension): 16mm
- Thread Pitch: 2.0
- Thread Length: 16mm
- Across Flats (Basic): 24mm
- Height (Basic): 16mm
- Flange Diameter: 34.5mm
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Hex Flange Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Locking Serrations
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8 Steel
- Coating: Uncoated
- Standards and Specifications: DIN 6923

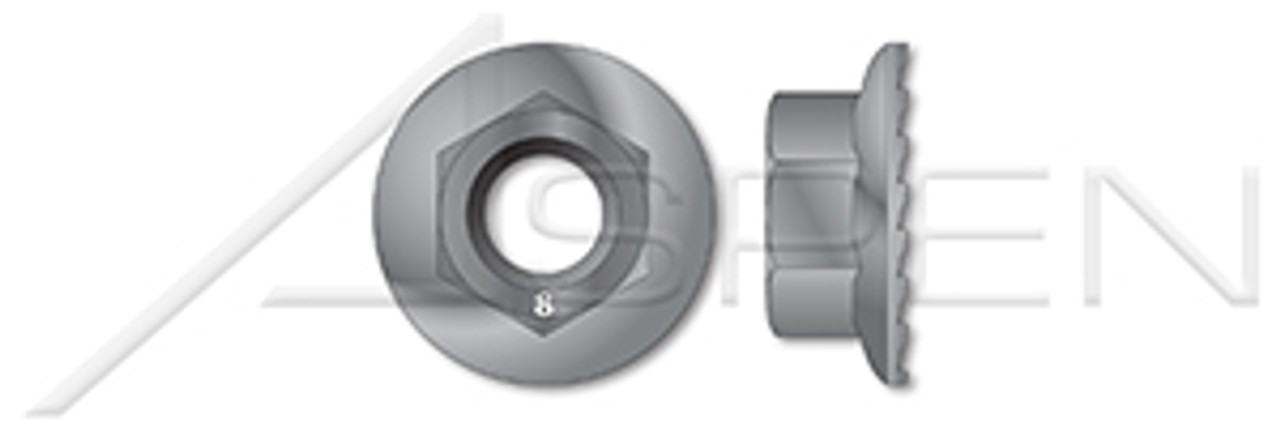

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Material Class 8 Steel
Category Hex Flange Nuts
System of Measurement Metric
Diameter/Pitch M16-2.0
Standards and Specifications DIN 6923
Drive Style External Hex Drive
Coating Process Uncoated
