Product Description
- Use a curved spring lock washer if you have a surface that cannot be damaged.
- Curved spring lock washers take advantage of the attempt of the washer to return to its original shape.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M12
- Diameter (Dimension): 12mm
- Inside Diameter (Nominal): 12.2mm
- Outside Diameter (Nominal): 21.1mm
- Thickness (Nominal): 2.1mm
- Product Class: Washers
- Order: Lock Washers
- Category: Curved Spring Lock Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 128 Type A

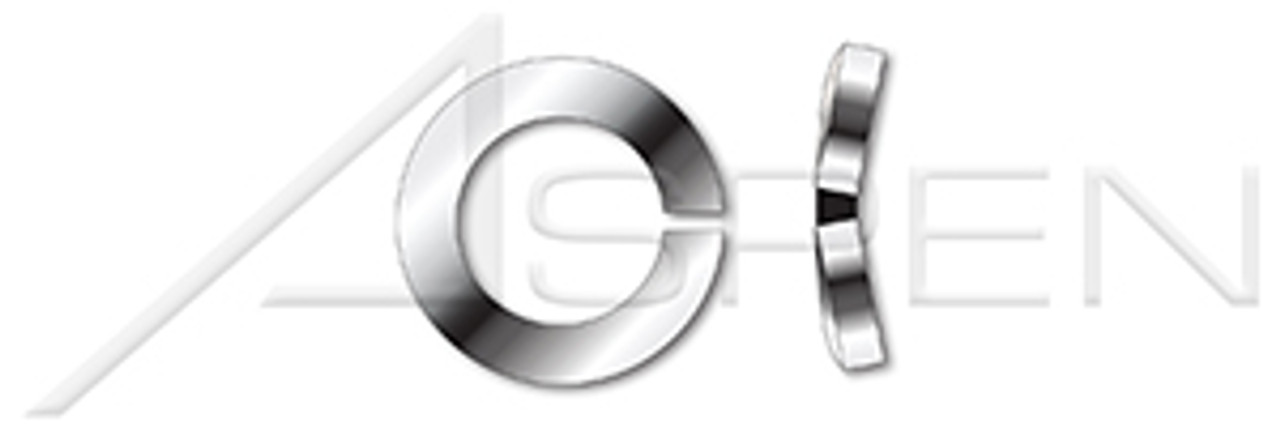

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Material A2 Stainless Steel
Inner Diameter 12.2mm
Category Curved Spring Lock Washers
System of Measurement Metric
Thickness 2.1mm
Standards and Specifications DIN 128 Type A
Outer Diameter 21.1mm
Coating Process Uncoated
Diameter/Pitch M12
