Product Description
- DIN 934 hex nuts are the most commonly used metric hex nuts.
- Hex finished nuts are considered the most commonly used hex nuts.
- Also known as regular hex nuts.
- Class 8 nuts are designed to be used with screws and bolts of property class 8.8 or lower.
- Diameter (Nominal): M12
- Diameter (Dimension): 12mm
- Thread Pitch: 1.25
- Thread Length (Minimum): 10mm
- Across Flats (Basic): 19mm
- Height (Basic): 10mm
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Hex Finished Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8 Steel
- Coating: Uncoated
- Standards and Specifications: DIN 934 / ISO 4032

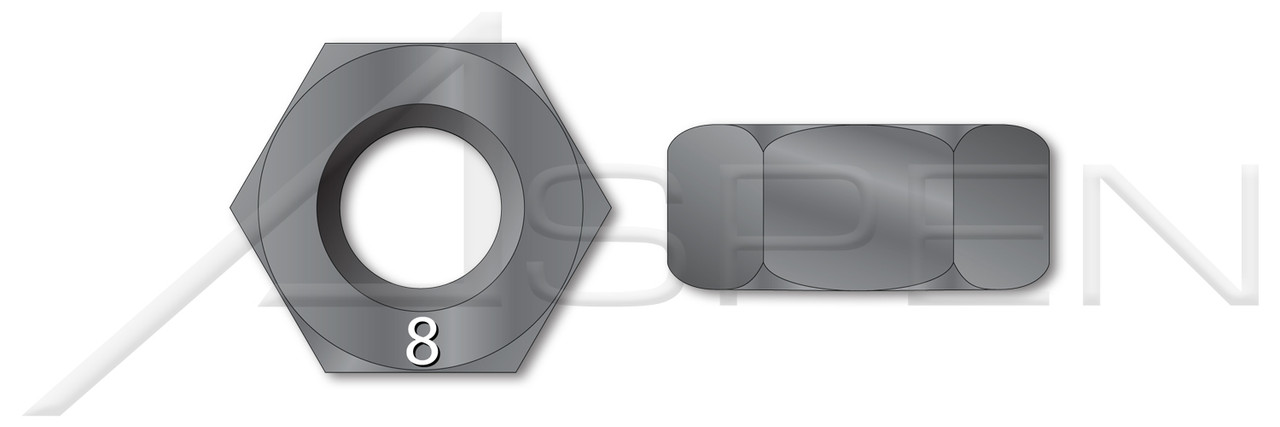

- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
System of Measurement Metric
Category Hex Finished Nuts
Standards and Specifications DIN 934 / ISO 4032
Coating Process Uncoated
Material Class 8 Steel
Diameter/Pitch M12-1.25
Drive Style External Hex Drive
