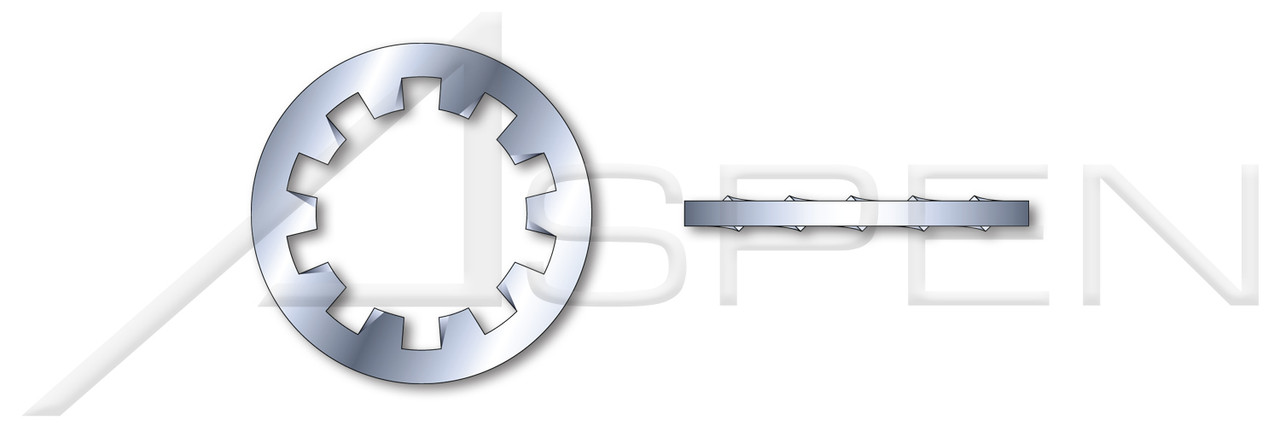

Product Description
- Tooth washers are made with small sharp and twisted teeth that, when compressed, prevent loosening.
- Effective as a lock washer when used with a soft substrate, such as aluminium or plastic.
- In electrical applications, the teeth create a grounding surface to improve the connection.
- Diameter (Nominal): M10
- Diameter (Dimension): 10mm
- Inside Diameter (Nominal): 10.5mm
- Inside Diameter (Minimum): 10.5mm
- Inside Diameter (Maximum): 10.77mm
- Outside Diameter (Nominal): 18mm
- Outside Diameter (Minimum): 17.57mm
- Outside Diameter (Maximum): 18mm
- Thickness (Nominal): 0.9mm
- Category: Tooth Lock Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Form and Design: Internal Tooth
- Material: Steel
- Material Grade: Spring Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: DIN 6797 Type J
Product Videos
Custom Field
Brand Aspen Fasteners
Category Tooth Lock Washers
Coating Zinc Plated
Coating Color Clear
Diameter (Dimension) 10mm
Diameter (Nominal) M10
Form and Design Internal Tooth
Inside Diameter (Maximum) 10.77mm
Inside Diameter (Minimum) 10.5mm
Inside Diameter (Nominal) 10.5mm
Material Steel
Material Grade Spring Steel
Order Lock Washers
Origin Origin Undefined
Outside Diameter (Maximum) 18mm
Outside Diameter (Minimum) 17.57mm
Outside Diameter (Nominal) 18mm
POS ME063-10-003000,ME063-10-001000,ME063-10-00600,ME063-10-006000,ME063-10-014000
Product Class Washers
Standards and Specifications DIN 6797 Type J
System of Measurement Metric
Thickness (Nominal) 0.9mm
