Product Description
- Headless set screws are also known as blind screws or grub screws.
- Holds an object in place via friction between the point of the screw and the fastened material.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Set screws are designed to be used under compressive stress only.
- Diameter (Nominal): M10
- Thread Pitch: 1.5
- Length (Nominal): 12mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Set Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Flat Point
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 551 / ISO 4766

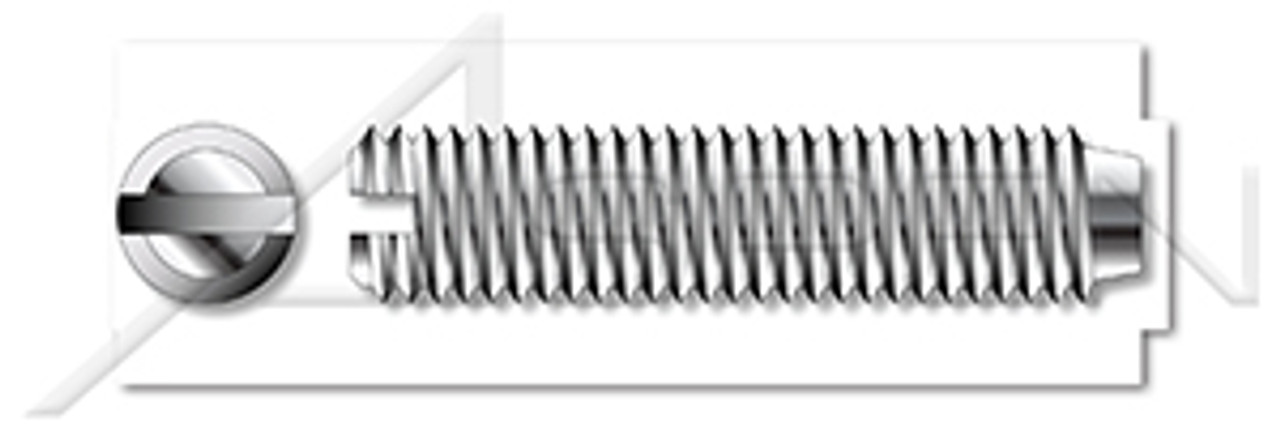

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Length 12mm
Drive Style Slotted Drive
Material A4 Stainless Steel
System of Measurement Metric
Category Set Screws
Coating Process Uncoated
Standards and Specifications DIN 551 / ISO 4766
Diameter/Pitch M10-1.5
