Product Description
- Precision swing eye bolts are driveless fasteners with a hole in the head.
- Precision machined unthreaded round hole called the "eye" allows for pin or bearing to be inserted.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Can be used as a hinge point.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M10
- Diameter (Dimension): 10mm
- Thread Pitch: 1.5
- Length (Nominal): 100mm
- Thread Length: 26mm
- Inside Diameter (Nominal): 10mm
- Head Diameter: 19.48mm
- Head Height: 12mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Precision Swing Eye Bolts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Spherical Eye Head
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 444 Type B

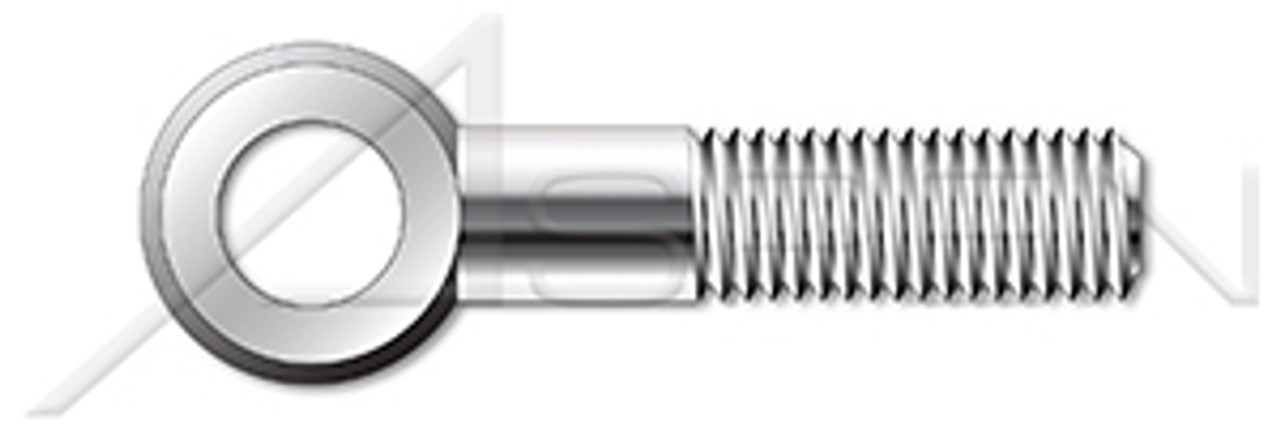

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Material A4 Stainless Steel
Standards and Specifications DIN 444 Type B
Head Style Spherical Eye Head
System of Measurement Metric
Inner Diameter 10mm
Category Precision Swing Eye Bolts
Diameter/Pitch M10-1.5
Coating Process Uncoated
Length 100mm
