Product Description
- Functionally similar to eye nuts, bow nuts are suitable for straight lifting.
- Often used in ship building.
- Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
- Diameter (Nominal): M10
- Diameter (Dimension): 10mm
- Thread Pitch: 1.5
- Thread Length: 12mm
- Inside Height: 25mm
- Inside Width (Minimum): 23mm
- Inside Width (Maximum): 42mm
- Base Width (Minimum): 18mm
- Base Width (Maximum): 23mm
- Thickness (Nominal): 8mm
- Height (Basic): 50mm
- Product Class: Internally Threaded Fasteners
- Order: Specialty Nuts
- Category: Lifting Bow Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: Thumb Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Brass
- Coating: Uncoated
- Standards and Specifications: DIN 80704

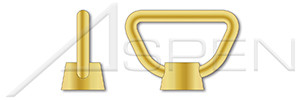

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Category Lifting Bow Nuts
Drive Style Thumb Drive
Thickness 8mm
Material Brass
System of Measurement Metric
Coating Process Uncoated
Standards and Specifications DIN 80704
Diameter/Pitch M10-1.5
