Product Description

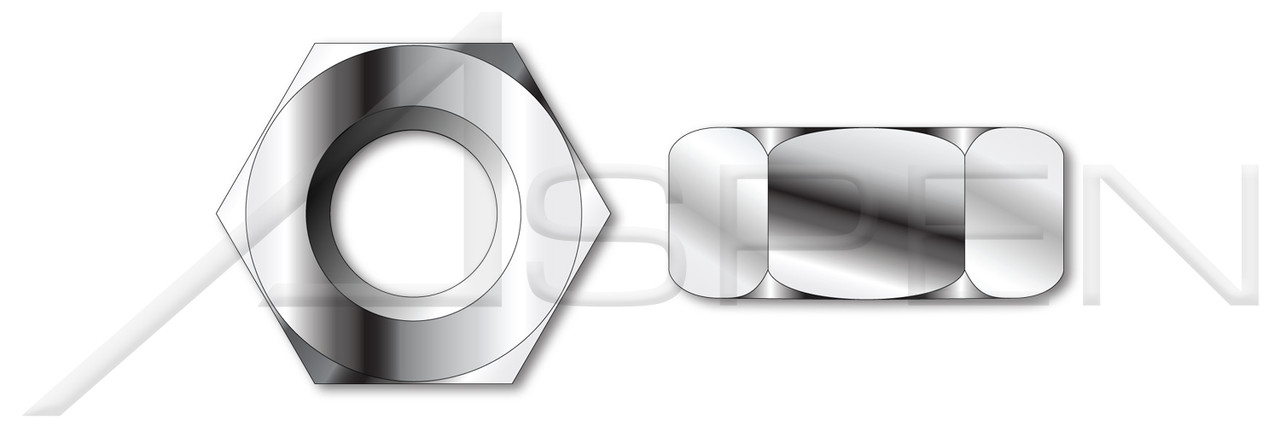

- DIN 934 hex nuts are the most commonly used metric hex nuts.
- Hex finished nuts are considered the most commonly used hex nuts.
- Also known as regular hex nuts.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M10
- Diameter (Dimension): 10mm
- Thread Pitch: 1.5
- Thread Length (Minimum): 8mm
- Across Flats (Basic): 17mm
- Height (Basic): 8mm
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Hex Finished Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 934 / ISO 4032
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
System of Measurement Metric
Standards and Specifications DIN 934 / ISO 4032
Drive Style External Hex Drive
Coating Process Uncoated
Category Hex Finished Nuts
Material A4 Stainless Steel
Diameter/Pitch M10-1.5
