Product Description
- Also known as tall nuts, hex high nuts offer a greater surface area for wrenching.
- Hex high nuts are much thicker than regular hex nuts allowing for increased thread engagement.
- Similar to a flange nut, the integrated collar offers a larger bearing surface.
- Class 10 nuts are designed to be used with screws and bolts of property class 10.9 or lower.
- Diameter (Nominal): M10
- Diameter (Dimension): 10mm
- Thread Pitch: 1.5
- Thread Length: 15mm
- Across Flats (Basic): 16mm
- Height (Basic): 15mm
- Flange Diameter: 22mm
- Flange Thickness: 4mm
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Hex High Nuts with Collar
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Length 1.5 X Diameter
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 10 Steel
- Coating: Uncoated
- Coating Color: Black
- Standards and Specifications: DIN 6331

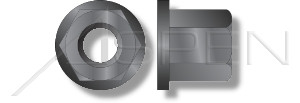

- A note on our product images: The copyrighted images are schematic representations. These are artistic renderings which may not reflect the exact appearance, proportions and/or relative dimensions of the actual products. For more precise imagery and/or technical references, please contact our customer support team.
Product Videos
Custom Field
Material Class 10 Steel
System of Measurement Metric
Drive Style External Hex Drive
Coating Process Uncoated, Black
Category Hex High Nuts with Collar
Diameter/Pitch M10-1.5
Standards and Specifications DIN 6331
