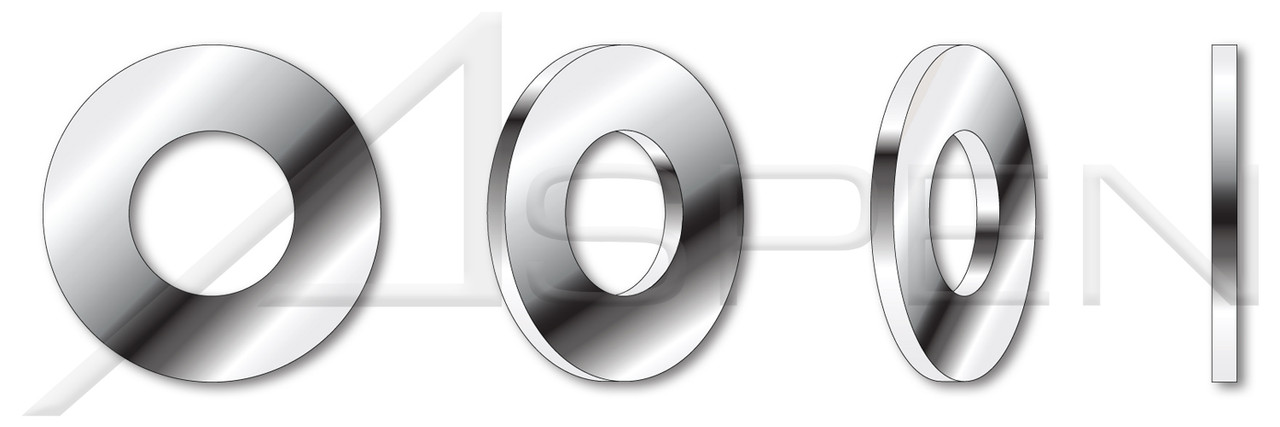

Product Description
- SAE flat washer dimensions were developed by the Society of Automotive Engineers.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- The nominal diameter is the bolt size to use for this flat washer.
- Diameter (Nominal): #8
- Inside Diameter (Nominal): 3/16"
- Inside Diameter (Minimum): 0.183"
- Inside Diameter (Maximum): 0.196"
- Outside Diameter (Nominal): 7/16"
- Outside Diameter (Minimum): 0.433"
- Outside Diameter (Maximum): 0.453"
- Thickness (Nominal): 3/64"
- Thickness (Minimum): 0.036"
- Thickness (Maximum): 0.065"
- Category: Standard Flat Washers
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Form and Design: SAE Flat Washer Dimensions
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.21.1-2009
Product Videos
Custom Field
Brand Aspen Fasteners
Category Standard Flat Washers
Coating Uncoated
Diameter (Nominal) #8
Form and Design SAE Flat Washer Dimensions
Inside Diameter (Maximum) 0.196"
Inside Diameter (Minimum) 0.183"
Inside Diameter (Nominal) 3/16"
Material Stainless Steel
Material Grade 18-8 Stainless Steel
Order Flat Washers
Origin Origin Undefined
Outside Diameter (Maximum) 0.453"
Outside Diameter (Minimum) 0.433"
Outside Diameter (Nominal) 7/16"
POS ST204-8-005000,ST204-8X316X716X364-003000
Product Class Washers
Standards and Specifications ASME B18.21.1-2009
System of Measurement Inch
Thickness (Maximum) 0.065"
Thickness (Minimum) 0.036"
Thickness (Nominal) 3/64"
