Product Description

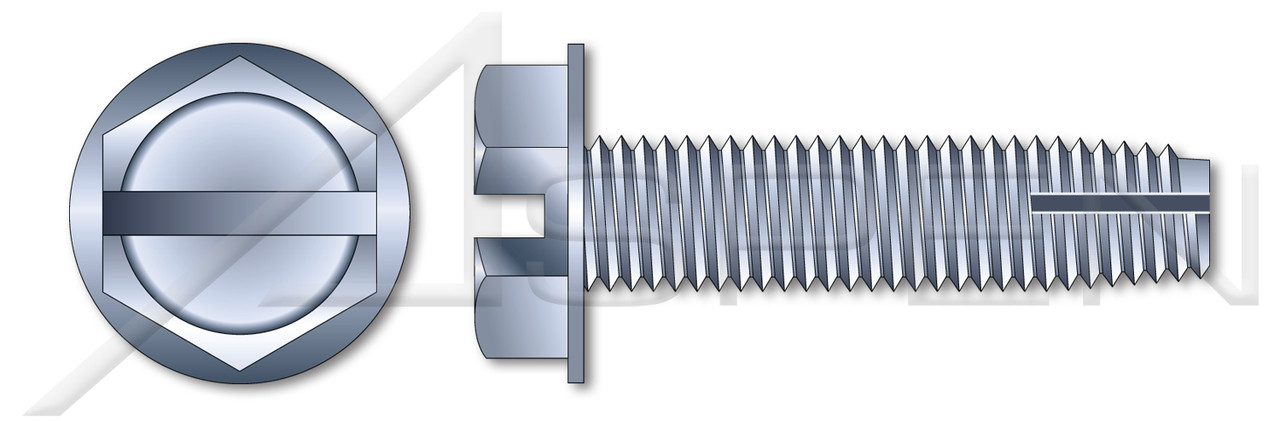

- Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.
- Type 1 point thread cutting screws have a single flute for general purpose use.
- Diameter (Nominal): #8
- Thread Pitch: 32
- Length (Nominal): 5/8"
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Thread Cutting Screws
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Head Style: Hex Indented Washer Head
- Drive Style: Hex Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Point: Type "1"
- Material: Steel
- Material Processes: Case Hardened
- Coating: Zinc Plated and Baked
- Coating Color: Clear
- Hardness Rating: Rockwell C45 min. / Core=C28-C38
- Standards and Specifications: ASME B18.6.3 and SAE J933
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Length 5/8"
Drive Style Hex Slotted Drive
Diameter/Pitch #8-32
Head Style Hex Indented Washer Head
Material Steel
Category Thread Cutting Screws
Standards and Specifications ASME B18.6.3 and SAE J933
System of Measurement US Units
Coating Process Zinc Plated and Baked, Clear
